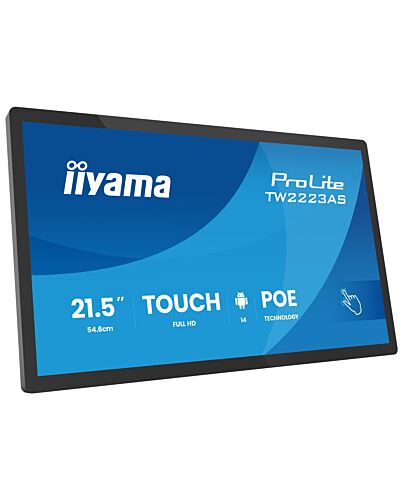

iiyama TW2223AS-B3P Signage Display Interactive flat panel 54.6 cm (21.5") Wi-Fi 450 cd/m² Full HD B
£368.28
iiyama TW2223AS-B3P, Interactive flat panel, 54.6 cm (21.5"), 1920 x 1080 pixels, Wi-Fi, 24/7
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TW2223AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.
Reasons To Buy
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.Specifications
Display
Panel type
IPS
Display diagonal*
54.6 cm (21.5")
Display resolution*
1920 x 1080 pixels
Display brightness*
450 cd/m²
HD type*
Full HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Native aspect ratio
16:9
Response time
14 ms
Contrast ratio (typical)
1500:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.248 x 0.248 mm
Active display area (W x H)
476.1 x 267.8 mm
Display diagonal (metric)
54.6 cm
Horizontal scan range
31 - 83 kHz
Colour depth
8 bit
Surface hardness
6H
Glass thickness
2.9 mm
Ports & interfaces
DVI port*
No
USB port*
Yes
USB ports quantity
3
USB connector type
USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
Audio (L/R) in
2
Microphone in
Yes
Card reader integrated
Yes
Compatible memory cards
SD
Audio
Built-in speaker(s)*
Yes
RMS rated power
4 W
Design
Product design*
Interactive flat panel
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
Screen shape
Flat
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Performance
Purpose*
Universal
Operating hours (hours/days)
24/7
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
15.4 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Power over Ethernet (PoE)
Yes
Computer system
Computer system*
Yes
Built-in processor*
Yes
Processor family
ARM Rockchip
Processor el
Rockchip RK3576
Operating system installed
Android
Operating system version
14
Google applications
Google Che, Gmail, Google Calendar
Weight & dimensions
Width
504.5 mm
Depth
32 mm
Height
302 mm
Weight
3.64 kg
Width (with stand)
504.5 mm
Depth (with stand)
32 mm
Height (with stand)
302 mm
Weight (with stand)
3.64 kg
Packaging data
Package width
580 mm
Package depth
375 mm
Package height
126 mm
Package weight
6 kg
Packaging content
Cables included
AC
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
User controls
Power switch, volume/ button +, volume/ button -
Sustainability certificates
ErP
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Quick start guide
Yes
AC adapter included
Yes
Bluetooth
Yes
Bluetooth version
5.3
Viewable size, horizontal
47.6 cm
Viewable size, vertical
26.8 cm
Brightness
450 cd/m²
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
Power supply type
External
Cable management
Yes
Additional Information
| EAN/UPC | 4948570127160 |
|---|---|
| MPN | TW2223AS-B3P |
| BRAND | Iiyama |
