ATEN 16-Port 19” LCD CAT5e/6 KVM over IP Switch 1 local / 1 remote (Dual Rail)
£3,826.51
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

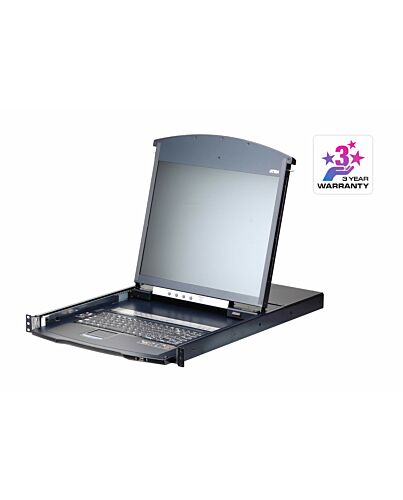

ATEN's KL1116VN 16-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad.
1x KL1116VN Cat 5 Dual Rail LCD KVM over IP Switch with a Rack Mount Kit
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
1x LIN2-418K-E12G Power Cord
2x L Brackets
1x User Instructions
1x KL1116VN Cat 5 Dual Rail LCD KVM over IP Switch with a Rack Mount Kit
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
1x LIN2-418K-E12G Power Cord
2x L Brackets
1x User Instructions
Key Features
- One bus for local and one bus for remote KVM over IP access
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- High Video Resolutions – up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch’s built-in LCD screen
- Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
Specifications
Display
Display diagonal*
48.3 cm (19")
Display
LCD
On Screen Display (OSD)
Yes
Technical details
Product colour
Black
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Number of computers controlled
16
LED indicators
Yes
Push button
Yes
Cabling technology
10/100/1000Base-T(X)
Compliance certificates
RoHS
Rack capacity*
1U
Ports & interfaces
VGA (D-Sub) ports quantity
1
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-D/VGA
Serial ports quantity
2
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Hot keys
Yes
Power
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Weight & dimensions
Width
480 mm
Height
44 mm
Depth
701.2 mm
Weight
15.6 kg
Packaging data
Package weight
18.6 kg
Package width
668 mm
Package depth
833 mm
Package height
135 mm
Packaging content
Quick installation guide
Yes
Manual
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
15.6 kg
Master (outer) case width
668 mm
Master (outer) case length
833 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
18.6 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264645297 |
|---|---|
| MPN | KL1116VN |
| BRAND | ATEN |
