Data Input Devices

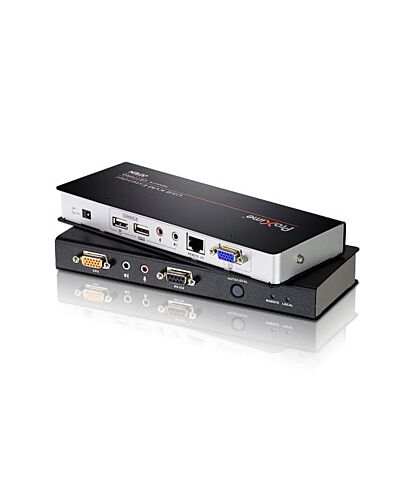

ATEN USB VGA KVM Extender with Audio, RS-232 and Deskew (300m)
£372.88
ATEN USB VGA KVM Extender with Audio, RS-232 and Deskew (300m), Transmitter & receiver, Wired, 300 m, Cat5, 1920 x 1200 pixels, 1920 x 1200, 1280 x 1024
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system f a remote USB console.
1x CE770L USB KVM Extender (Local Unit)
1x CE770RQ USB KVM Extender (Remote Unit)
1x USB KVM Cable (1.8m)
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
1x CE770L USB KVM Extender (Local Unit)
1x CE770RQ USB KVM Extender (Remote Unit)
1x USB KVM Cable (1.8m)
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
Key Features
- Local and Remote Units connect at distances up to 300 m using Cat 5e cable
- Dual console operation - control your system f both the local and remote USB keyboard, monitor, and mouse consoles
- High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
Specifications
Features
Type*
Transmitter & receiver
Connectivity technology*
Wired
Maximum transfer distance
300 m
Cable types supported
Cat5
Rack mounting
Yes
Maximum digital resolution
1920 x 1200 pixels
Supported resolutions
1920 x 1200, 1280 x 1024
Product colour
Black
Material
Aluminium, Metal
LED indicators
Link, Power
Transmitter
Transmitter video port type
VGA
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
1
Receiver
Receiver local video port type
VGA
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1
Power
AC adapter output voltage
5.3 V
Weight & dimensions
Transmitter width
20.2 cm
Transmitter depth
8.64 cm
Transmitter height
2.5 cm
Transmitter weight
490 g
Receiver width
20.2 cm
Receiver depth
8.64 cm
Weight & dimensions
Receiver height
2.5 cm
Receiver weight
490 g
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
1.85 kg
Packaging content
Manual
Yes
Quick installation guide
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Technical details
Weight
1.8 kg
Logistics data
Master (outer) case net weight
9 kg
Harmonized System (HS) code
84733080
Master (outer) case width
342 mm
Master (outer) case length
512 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
10.1 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4710423776432 |
|---|---|
| MPN | CE770 |
| BRAND | ATEN |
