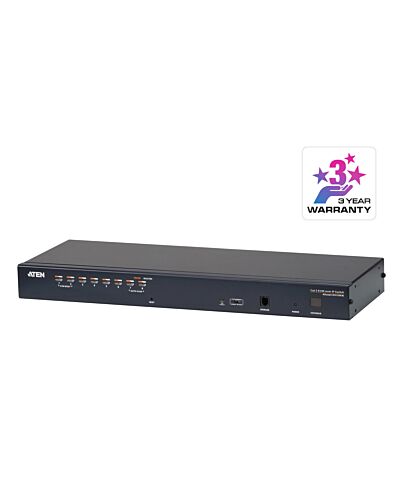

ATEN 8-Port CAT5e/6 KVM Over IP Switch
£793.70
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The KH1508Ai Cat 5 High-Density KVM over IP Switch offers 8 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.
The KH1508Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance- up to 50m* without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
In addition to TCP/IP connectivity, the KH1508Ai provides console ports for a locally attached USB or PS/2 console and a Laptop USB console (LUC) – allowing access and control f the data center as well as over the Net.
1x KH1508Ai Cat 5 High-Density KVM over IP Switch
1x Upgrade Cable
1x LIN6-04U1-M18G Laptop USB Console Cable USB-A to Micro USB-B
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
The KH1508Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance- up to 50m* without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
In addition to TCP/IP connectivity, the KH1508Ai provides console ports for a locally attached USB or PS/2 console and a Laptop USB console (LUC) – allowing access and control f the data center as well as over the Net.
1x KH1508Ai Cat 5 High-Density KVM over IP Switch
1x Upgrade Cable
1x LIN6-04U1-M18G Laptop USB Console Cable USB-A to Micro USB-B
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
Key Features
- Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
- Panel Array e™
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in f browser
Specifications
Ports & interfaces
Number of computers controlled*
8
Keyboard port type*
USB, PS/2
Mouse port type*
USB, PS/2
Video port type*
VGA
Console ports*
PS/2, USB A, VGA (D-Sub)
Console USB ports quantity
2
USB hub
Yes
PS/2 ports quantity
2
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
8
Performance
HD type*
WUXGA
Maximum resolution*
1920 x 1200 pixels
Video bandwidth
60 Hz
Scan interval
1,255 s
Design
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Display
Built-in display*
No
Power
Power source
AC
Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1 A
Power consumption (typical)
8.7 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
437.2 mm
Depth
163.6 mm
Height
44 mm
Weight
3.18 kg
Packaging data
Package width
131 mm
Package depth
540 mm
Package height
233 mm
Package weight
3.58 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
9.54 kg
Harmonized System (HS) code
85176200
Master (outer) case width
420 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
11.4 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4710423777439 |
|---|---|
| MPN | KH1508AI |
| BRAND | ATEN |
