ATEN 16-Port USB - PS/2 VGA KVM Switch with USB Peripheral port
£465.73
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

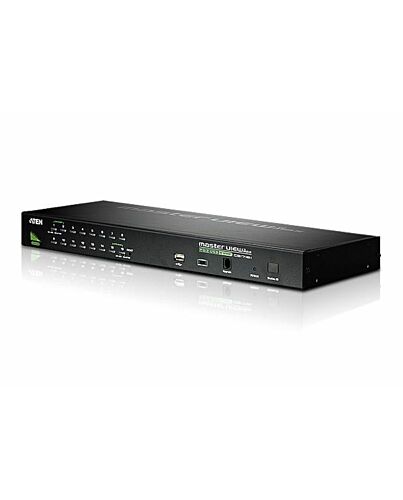

The CS1716A KVM switch is a control unit that allows access to multiple computers f a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled f a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
1x KVM Switch with Standard Rack Mounting Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Upgrade Cable
1x Foot Pad Set(4 PCS)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x KVM Switch with Standard Rack Mounting Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Upgrade Cable
1x Foot Pad Set(4 PCS)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key Features
- Superior video quality - up to 2048 x 1536; DDC2B
- One USB-PS/2 console controls up to 16 computers; Daisy-chain up to 31 additional units - control up to 512 computers f a single console
- Broadcast e - operation simultaneously performed on all selected computers... etc
- Video DynaSync™ - stores the console monitor EDID to optimize display resolution
Specifications
Ports & interfaces
Number of computers controlled*
512
Keyboard port type*
USB, PS/2
Mouse port type*
USB, PS/2
Video port type*
VGA
VGA (D-Sub) ports quantity
17
Console ports*
USB A, VGA (D-Sub)
Console USB ports quantity
1
DC-in jack
Yes
Performance
HD type*
QXGA
Maximum resolution*
2048 x 1536 pixels
Scan interval
1,255 s
DDC2B support
Yes
Hot-Plug support
Yes
Daisy chain
Yes
upgradeable
Yes
Design
Rack mounting*
Yes
Rack capacity
1U
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
On Screen Display (OSD)
Yes
Power
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
6.6 W
System requirements
Windows operating systems supported
Yes
System requirements
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
437.2 mm
Depth
159.9 mm
Height
44 mm
Weight
3.61 kg
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
4 kg
Packaging content
Cables included
KVM
Quick installation guide
Yes
AC adapter included
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
10.8 kg
Harmonized System (HS) code
85176200
Master (outer) case width
375 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
12.6 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4710423775329 |
|---|---|
| MPN | CS1716A |
| BRAND | ATEN |
