Data Input Devices

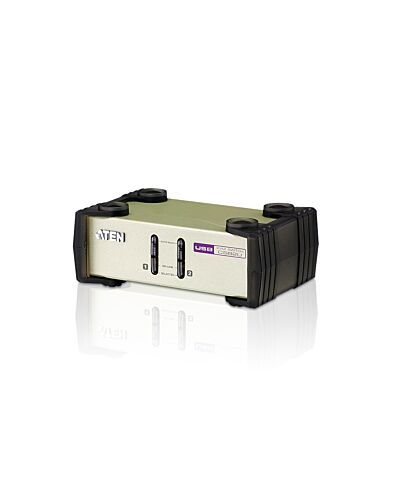

ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
£65.44
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers f a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
1x CS82U PS/2-USB KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables
1x User Instructions
1x CS82U PS/2-USB KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables
1x User Instructions
Key Features
- Superior video quality - 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
VGA
VGA (D-Sub) ports quantity
2
Console ports*
USB A, VGA (D-Sub)
Console USB ports quantity
2
DC-in jack
Yes
Performance
HD type*
QXGA
Maximum resolution*
2048 x 1536 pixels
Video bandwidth
60 Hz
Scan interval
3,5,10,20 s
DDC2B support
Yes
Design
Rack mounting*
No
Product colour*
Light grey
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
0.72 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
88 mm
Depth
140 mm
Height
55.5 mm
Weight
869 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
175 mm
Package weight
981 g
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
8.69 kg
Harmonized System (HS) code
85176200
Master (outer) case width
328 mm
Master (outer) case length
497 mm
Master (outer) case height
196 mm
Master (outer) case gross weight
10.4 kg
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 4710423777002 |
|---|---|
| MPN | CS82U |
| BRAND | ATEN |
