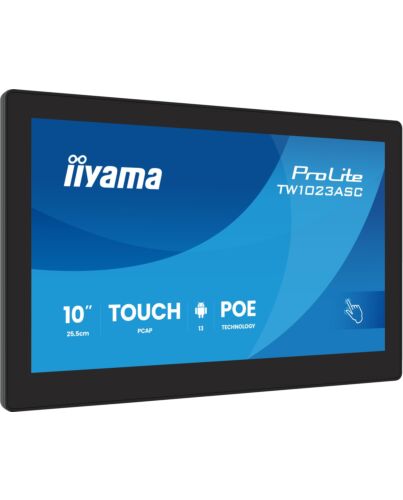

iiyama TW1023ASC-B3P Signage Display Kiosk design 25.6 cm (10.1") Wi-Fi 385 cd/m² WXGA Black Touchsc
£190.69
iiyama TW1023ASC-B3P, Kiosk design, 25.6 cm (10.1"), 1280 x 800 pixels, Wi-Fi, 24/7
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, ern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
Reasons To Buy
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.Build-in webcam, microphone and speakers
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compising on the safety and security of your staff, visitors and company assets.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.Specifications
Display
Panel type
IPS
Display diagonal*
25.6 cm (10.1")
Display resolution*
1280 x 800 pixels
Display brightness*
385 cd/m²
HD type*
WXGA
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Multi-touch
Yes
Native aspect ratio
16:10
Response time
25 ms
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
160°
Viewing angle, vertical
160°
Display number of colours
16.7 million colours
Pixel pitch
0.1692 x 0.1692 mm
Active display area (W x H)
216.6 x 135.4 mm
Display diagonal (metric)
25.5 cm
Colour depth
8 bit
Surface hardness
6H
Glass thickness
1.25 mm
Ports & interfaces
HDMI input ports quantity
1
Mini HDMI ports quantity
1
DVI port*
No
USB port*
Yes
USB ports quantity
4
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type
Micro-USB, USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Ethernet LAN (RJ-45) ports
1
PC Audio in
Yes
Card reader integrated
Yes
Compatible memory cards
SD
DC-in jack
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
3 W
Design
Product design*
Kiosk design
Orientation
Horizontal/Vertical
Product colour*
Black
VESA mounting*
Yes
Bezel colour
Black
Fingerprint resistant
Yes
Performance
Purpose*
Universal
Operating hours (hours/days)
24/7
Number of microphones
1
Power
Power consumption (typical)*
18 W
Power consumption (standby)*
0.5 W
Input voltage
12 V
Power consumption (off)
0.3 W
Computer system
Built-in processor*
Yes
Processor manufacturer
Rockchip
Processor family
ARM Rockchip
Processor el
RK3568
Processor frequency
2 GHz
Computer system
Processor cores
4
Internal memory
4 GB
On-board graphics card el
Mali-G52 MC1
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
13
Google applications
Google Che, Gmail, Google Calendar
Weight & dimensions
Display width
255 mm
Display depth
30.5 mm
Display height
172 mm
Display weight
800 g
Width
255 mm
Depth
30.5 mm
Height
172 mm
Weight
800 g
Packaging data
Package width
398 mm
Package depth
68 mm
Package height
223 mm
Package weight
1.36 kg
Packaging content
Power adapter included
Yes
Cables included
AC
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Logistics data
Products per pallet
256 pc(s)
Pallet gross length
100 cm
Pallet gross width
2.15 m
Pallet gross height
120 cm
Network
Ethernet LAN*
Yes
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Features
Suitable for indoor use
Yes
Technical details
Audio in (mini jack)
Yes
User controls
Power, home, brightness +, brightness -, volume +, volume -
Internal memory
32000 MB
Sustainability certificates
ErP
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Micro-USB ports quantity
1
Quick start guide
Yes
AC adapter included
Yes
Audio input
✓
Bluetooth
Yes
Bluetooth version
5.2
Built-in microphone
Yes
Megapixel (approx.)
5 MP
RJ-45 ports quantity
1
USB 2.0 ports quantity
2
Viewable size, horizontal
21.7 cm
Viewable size, vertical
13.5 cm
Brightness
385 cd/m²
Power supply type
External
Cable management
Yes
Built-in camera
Yes
Additional Information
| EAN/UPC | 4948570126927 |
|---|---|
| MPN | TW1023ASC-B3P |
| BRAND | Iiyama |
