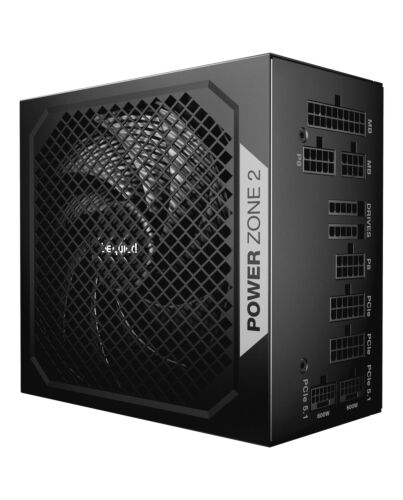

be quiet! POWER ZONE 2 | 1200 W power supply unit 20+4 pin ATX ATX Black
£163.18
be quiet! POWER ZONE 2 | 1200 W, 1200 W, 100 - 240 V, 1270 W, 50/60 Hz, 15 A, 7.5 A
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Exceptional efficiency for Gamers
Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. With 90° angled 12V-2x6 connectors in the scope of delivery and PCIe 5.1/ATX 3.1 compatibility, Power Zone 2 supports the latest graphics cards and constitutes a reliable investment for the future.
Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. With 90° angled 12V-2x6 connectors in the scope of delivery and PCIe 5.1/ATX 3.1 compatibility, Power Zone 2 supports the latest graphics cards and constitutes a reliable investment for the future.
Key Features
- 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.3%)
- Semi-passive zero-RPM cooling
- Fan runs on for 2-5 minutes to avoid frequent starting noise
- Pure Wings 3 140mm fan for quiet and efficient cooling
- 2 x 90° angled 12V-2x6 connectors and PCIe 5.1/ATX 3.1 compatibility
- Advanced voltage regulation and stability thanks to LLC technology
- One massive high-performance 12V-rail
- Unique look with an unmistakable mesh design
- Product conception, design and quality control in Germany
Specifications
Power
Total power*
1200 W
Peak power
1270 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Maximum input current (@110V)
15 A
Maximum input current (@220V)
7.5 A
Power factor
0.97
Number of +12V rail(s)
1
Combined power (+3.3V)
120 W
Combined power (+12V)
1200 W
Combined power (+5V)
120 W
Combined power (-12V)
6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
100 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
20.42 ms
Efficiency
92.7%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
7
SATA power cable length
550,700,850,1000 mm
Number of SATA power cables
2
Peripheral (Molex) power connectors (4-pin)*
1
Peripheral (Molex) power cable length
1000 mm
EPS power connector (8-pin)
Yes
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (12-pin)
2
PCI Express power cable length
60 cm
CPU P4 connector (4-pin)
1
CPU power connector (4+4 pin)
Yes
CPU power cable length
70 cm
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Platinum
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
EPS version
2.92
Performance
Noise level
25.5 dB
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
14 cm
Number of fans
1 fan(s)
Fan speed
0 - 2100 RPM
On/off switch
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 95%
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
1.88 kg
Packaging data
Manual
Yes
Manual languages
German, English, Spanish, French, Polish, Russian, Ukrainian
Package width
248 mm
Package depth
328 mm
Package height
102 mm
Package weight
3.5 kg
Package type
Box
Technical details
Sustainability certificates
ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length
43 cm
Shipping (inner) case width
26.5 cm
Shipping (inner) case height
34 cm
Products per shipping (inner) case
4 pc(s)
Shipping (inner) case gross weight
14.9 kg
Other features
Screws included
Yes
Cable ties included
Yes
Additional Information
| EAN/UPC | 4260052193563 |
|---|---|
| MPN | BP030EU |
| BRAND | BEQUIET |
