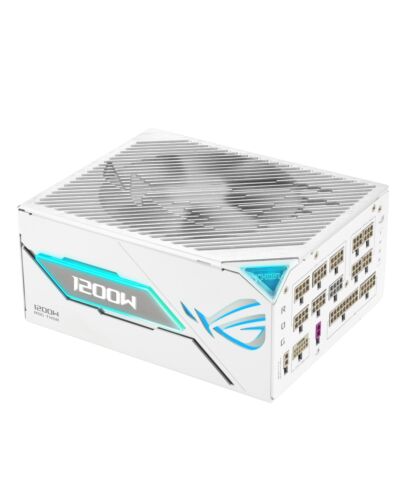

ASUS ROG -THOR-1200P3-WHITE-GAMING power supply unit 1200 W 20+4 pin ATX ATX

Be the first to review this product

£396.97

ASUS ROG -THOR-1200P3-WHITE-GAMING, 1200 W, 100 - 240 V, Active, 125 W, 1200 W, 125 W

Out of stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

ROG THOR 1200W PLATINUM III WHITE EDITION
ULTIMATE POWER.
UNMATCHED STABILITY.

The ROG Thor 1200W Platinum III White Edition delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and “GPU-First” voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo e for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1200W Platinum III White Edition also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accomate fan-up or fan-down PSU installation.

Key Features

GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
"GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
Magnetic OLED display shows a -time power draw and can be swapped to either side of the unit to accomate fan-up or fan-down PSU installation.
Turbo e: Premium components and a fine-tuned fan curve support for extended power excursions.
ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
Etched ular cables with a pliable premium material ensure effortless cable management and exceptional safety.
Lambda A++ Certification: low noise levels, below 15 dB.
80 PLUS Platinum : ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.

Specifications

Power

Total power*

1200 W

AC input voltage*

100 - 240 V

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

125 W

Combined power (+12V)

1200 W

Combined power (+5V)

125 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

30 A

Max output current (+12V)

100 A

Max output current (+5V)

25 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Power protection features

Overheating, Over current, Over power, Over voltage, Short circuit, Under power

Ports & interfaces

Motherboard power connector*

20+4 pin ATX

Motherboard power cable length

61 cm

Number of SATA power connectors

SATA power cable length

400,120 mm

Peripheral (Molex) power connectors (4-pin)*

Peripheral (Molex) power cable length

400,150 mm

PCI Express power connectors (6+2 pin)

PCI Express power connectors (16-pin)

PCI Express power cable length

75 cm

CPU power connector (4+4 pin)

Yes

CPU power cable length

100 cm

Cabling type

Fully-ular

Performance

80 PLUS certification*

80 PLUS Platinum

Purpose*

Power supply unit (PSU) form factor*

ATX

ATX version

3.1

Mean time between failures (MTBF)

120000 h

Design

Product colour

White

Cooling type

Active

Number of fans

1 fan(s)

Fan location

Top

Illumination

Yes

On/off switch

Yes

Packaging content

Cables included

CPU, DC, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width

190 mm

Depth

150 mm

Height

86 mm

Weight

2.37 kg

Packaging data

Package width

379 mm

Package depth

241 mm

Package height

127 mm

Package weight

5.21 kg

Package type

Box

Additional Information

More Information
EAN/UPC	4711636125420
MPN	90YE00V5-B0NA00
