Computers

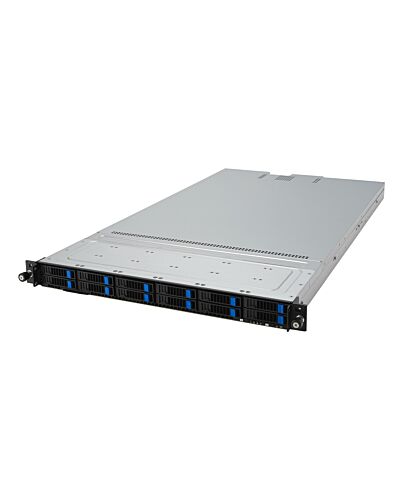

ASUS RS501A-E12-RS12U LGA 6096 Rack (1U) Black, Silver
£2,529.49
ASUS RS501A-E12-RS12U, LGA 6096, AMD, DDR5-SDRAM, 3 TB, 6400,5600 MHz, M.2,2.5
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
AMD EPYC™ 9005 single-processor 1U server that supports up to 24 DIMM, 12 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, two single-slot GPUs, and ASUS ASMB11-iKVM
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for ern data centers.
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for ern data centers.
Key Features
- Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 360 watts
- Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, four NVMe in middle bay, and three PCIe 5.0 slots for higher bandwidth and system upgrades
- Flexible networking ule design: On-board LAN ule, and OCP 3.0 ule with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air-cooling solution: Features enhanced-volume air-cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads: Up to two single-slot GPUs.
Specifications
Processor
Built-in processor*
No
Processor socket*
LGA 6096
Processor manufacturer
AMD
Number of processors supported*
1
Memory
Number of DIMM slots*
24
Supported memory types*
DDR5-SDRAM
Maximum internal memory
3 TB
Supported RDIMM clock speeds
6400,5600 MHz
Storage
Number of storage drives supported*
14
Hot-swap HDD bays*
Yes
Number of 2.5" bays
12
Storage drive sizes supported
M.2,2.5
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
Serial ATA, Serial Attached SCSI (SAS)
SSD form factor
M.2
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports*
2
VGA (D-Sub) ports quantity
1
Expansion slots
PCI Express x8 (Gen 5.x) slots
3
Number of M.2 (M) slots
2
Design
Chassis type*
Rack (1U)
Product colour
Black, Silver
LED indicators
Yes
On/off switch
Yes
Power
Power supply*
1600 W
Redundant power supply (RPS) support
Yes
Number of redundant power supplies supported
2
80 PLUS certification
80 PLUS Titanium
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
20 - 90%
Weight & dimensions
Width
842.5 mm
Depth
449 mm
Height
43.9 mm
Weight
14.2 kg
Packaging data
Package weight
19.2 kg
Additional Information
| EAN/UPC | 4711387768723 |
|---|---|
| MPN | 90SF03Y1-M000D0 |
| BRAND | ASUS |
