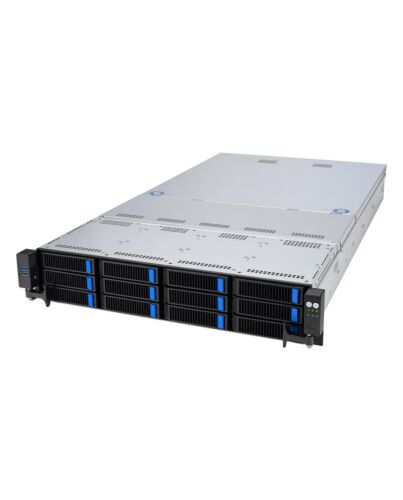

ASUS RS521A-E12-RS12U Socket SP5 Rack (2U) Black, Silver
£2,788.04
ASUS RS521A-E12-RS12U, Socket SP5, AMD, AMD, AMD EPYC 9004, DDR5-SDRAM, 3 TB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for ern data centers.
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for ern data centers.
Key Features
- Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 400 watts
- Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, two drives in the panel, and five PCIe 5.0 slots for higher bandwidth and system upgrades
- Flexible networking ule design: On-board LAN ule, and OCP 3.0 ule with PCIe 5.0 slot in rear panel for faster connectivity
- Air cooling solution: With heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers for versatile workloads
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads: Up to two dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx
Specifications
Processor
Built-in processor*
No
Processor socket*
Socket SP5
Processor manufacturer
AMD
Processor family
AMD
Number of processors supported*
1
Compatible processor series
AMD EPYC 9004
Memory
Number of DIMM slots*
24
Supported memory types*
DDR5-SDRAM
Maximum internal memory
3 TB
Supported RDIMM clock speeds
4800,6400,5600 MHz
Storage
Number of storage drives supported*
16
Hot-swap HDD bays*
Yes
Number of 2.5" bays
2
Number of 3.5" bays
12
Storage drive sizes supported
M.2,2.5,3.5
Supported storage drive types
HDD & SSD
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
LAN controller
Intel® I350-AM2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports*
2
Ports & interfaces
IPMI LAN (RJ-45) port
Yes
VGA (D-Sub) ports quantity
1
Expansion slots
PCI Express x8 slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
2
Design
Chassis type*
Rack (2U)
Product colour
Black, Silver
LED indicators
Yes
Power
Power supply*
1600 W
80 PLUS certification
80 PLUS Titanium
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
20 - 90%
Weight & dimensions
Width
840 mm
Depth
449 mm
Height
88.1 mm
Weight
17.9 kg
Packaging data
Package weight
25.1 kg
Additional Information
| EAN/UPC | 4711387768655 |
|---|---|
| MPN | 90SF03X1-M000C0 |
| BRAND | ASUS |
