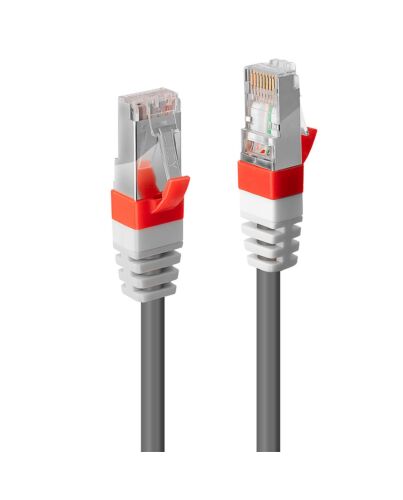

Lindy 20m Cat.6A S/FTP LSZH Network Cable, Grey
£58.03
Lindy 20m Cat.6A S/FTP LSZH Network Cable, Grey, 20 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz.
These cables are manufactured and tested according to the /IEC 11801 specification. The cables are packaged individually in a polybag. The 100% Component test slip included in each polybag ensures flawless compatibility between devices, each component of the cable is individually tested helping to eliminate problems such as insertion loss, return loss and crosstalk.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz.
These cables are manufactured and tested according to the /IEC 11801 specification. The cables are packaged individually in a polybag. The 100% Component test slip included in each polybag ensures flawless compatibility between devices, each component of the cable is individually tested helping to eliminate problems such as insertion loss, return loss and crosstalk.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red.
Key Features
- Twisted Pair Patch Cable with RJ45 connectors and Test Report (100% Test)
- Cat.6A S/FTP PIMF, LSZH
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Specifications
Features
Product colour*
Grey
Cable length*
20 m
Cable standard*
Cat6a
Cable shielding*
S/FTP (S-STP)
Connector 1*
RJ-45
Connector 2*
RJ-45
Connector 1 gender*
Male
Connector 2 gender*
Male
Connector contacts plating
Nickel/Gold
Connector shielding
Yes
Connector shield material
Aluminium/Polyester
Jacket material
Low smoke zero halogen (LSZH)
Conductor material
Copper
AWG wire size
26
Frequency
500 MHz
Features
Bend radius (min)
1.86 cm
Operational conditions
Operating temperature (T-T)
-25 - 60 °C
Storage temperature (T-T)
-25 - 60 °C
Certificates
Certification
RoHS, REACH, UL
Weight & dimensions
Outer diameter
6.2 mm
Connector 1 dimensions (WxDxH)
11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH)
11.6 x 21.5 x 8.3 mm
Packaging data
Package type
Polybag
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4002888453592 |
|---|---|
| MPN | 45359 |
| BRAND | Lindy |
