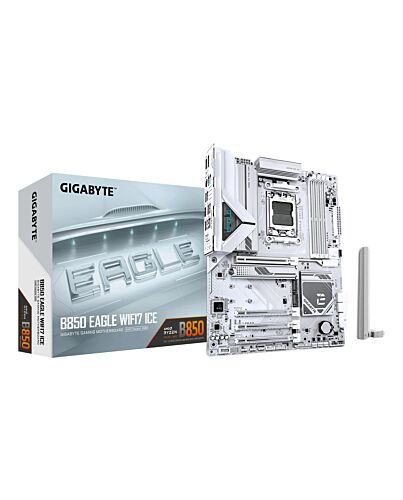

GIGABYTE B850 EAGLE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up
£168.26
GIGABYTE B850 EAGLE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- X3D Turbo e : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory ule Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage: 3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: HDMI, Displayport
- PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory clock speed (max)
8200 MHz
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of HDDs supported
4
Number of storage drives supported
7
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
On-board graphics card
No
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
12V power connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 2.0 ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
2
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
HDMI ports quantity*
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Network
LAN controller
tek RTL8125
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller el
tek RTL8922AE
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
AMD B850
Audio chip
tek ALC897
Audio output channels*
7.1 channels
Product colour
White
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
3
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
1.89 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight
1.69 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331871239 |
|---|---|
| MPN | B850 EAGLE WIFI7 ICE |
| BRAND | Gigabyte |
