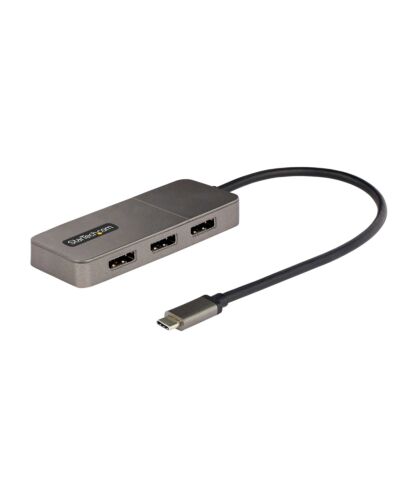

StarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.4 MST Hub, Triple 4K
£34.69
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent DisplayPort™ monitors
This USB-C to DisplayPort MST Hub enables a connection to three DisplayPort monitors, using a DisplayPort Alternate e (DP Alt e) capable USB-C enabled host device.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Multi-tasking Made Easy
This USB-C to DisplayPort video splitter allows you to configure your displays in extended or duplicated e. Connecting three independent 4K 60Hz displays creates high-performance workstations. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Host Connection
Output 1 Resolution
Output 2 Resolution
Output 3 Resolution
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
4K 60Hz
DisplayPort 1.4
4K 60Hz
4K 30Hz
4K 30Hz
DisplayPort 1.2
4K 30Hz
4K 30Hz
1080p 60Hz
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Hassle-Free Setup
Windows devices that support DP Alt e over USB-C feature native support for MST. This USB-C to DisplayPort hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.
This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
This USB-C to DisplayPort MST Hub enables a connection to three DisplayPort monitors, using a DisplayPort Alternate e (DP Alt e) capable USB-C enabled host device.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Multi-tasking Made Easy
This USB-C to DisplayPort video splitter allows you to configure your displays in extended or duplicated e. Connecting three independent 4K 60Hz displays creates high-performance workstations. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Host Connection
Output 1 Resolution
Output 2 Resolution
Output 3 Resolution
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
4K 60Hz
DisplayPort 1.4
4K 60Hz
4K 30Hz
4K 30Hz
DisplayPort 1.2
4K 30Hz
4K 30Hz
1080p 60Hz
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Hassle-Free Setup
Windows devices that support DP Alt e over USB-C feature native support for MST. This USB-C to DisplayPort hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.
This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key Features
- MULTI-MONITOR CONFIGURATION: USB Type-C to Triple DisplayPort MST Hub/Splitter drives up to three 4K60Hz displays f a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Triple 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU
- EXTRA LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple DisplayPort Adapter
Specifications
Performance
USB connector type
USB Type-C
USB connector gender
Male
USB connector form factor
Straight
DVI output*
No
High Dynamic Range (HDR) supported
Yes
HDMI output*
No
DisplayPort output*
Yes
Number of displays supported*
3
DisplayPorts quantity
3
DisplayPort version
1.4
Maximum resolution
4096 x 2160 pixels
Refresh rate at maximum resolution
60 Hz
Audio output channels
2.0 channels
Chipset
Synaptics VMM5330
Data transfer rate (max)
32.4 Gbit/s
Design
Product colour
Grey
Integrated USB cable
Yes
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac compatibility
No
Weight & dimensions
Width
105 mm
Depth
300 mm
Height
14 mm
Weight
52 g
USB cable length
0.3 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 85%
Packaging data
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
92.4 g
Technical details
Compliance certificates
CE, RoHS
Logistics data
Products per master (outer) case
70 pc(s)
Master (outer) case width
473 mm
Master (outer) case length
331 mm
Master (outer) case height
440 mm
Additional Information
| EAN/UPC | 0065030884389 |
|---|---|
| MPN | MST14CD123DP |
| BRAND | STARTECH |
