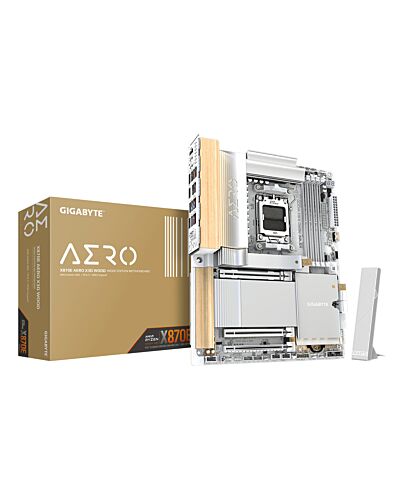

GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM,
£381.00
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge technology.
Key Features
- Raw textures reveal timeless elegance
- X3D Turbo e 2.0: Incredible X3D performance unleashed by AI
- Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory ule Support. DDR5 OC up to 9000MT/s
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
- PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability
- Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
- Fast Networking: Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory clock speed (max)
9000 MHz
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, PCI Express 5.0, SATA III
Number of HDDs supported
4
Number of storage drives supported
8
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
On-board graphics card
No
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
HDCP version
2.3
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
6
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
2
TPM connector
Yes
12V power connector
Yes
Number of water pump connectors
2
Number of temperature sensor headers
2
Number of noise detection headers
1
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
5
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
2
HDMI ports quantity*
1
HDMI version
2.1
DisplayPort version
1.4
Headphone outputs
1
Microphone in
Yes
S/PDIF out port
Yes
Digital audio optical out
1
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller
tek RTL8126
Network
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller el
MediaTek MT7927
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
AMD X870E
Audio chip
tek ALC1220-VB
Audio output channels*
7.1 channels
Product colour
White
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
4
1st M.2 largest key size
2580
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
341 mm
Package depth
306 mm
Package height
89 mm
Package weight
3.67 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
Other features
Weight
3.17 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331878481 |
|---|---|
| MPN | X870E AERO X3D WOOD |
| BRAND | Gigabyte |
