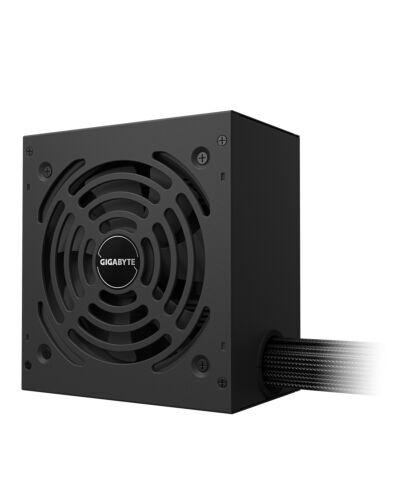

GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, UK P
£48.56
GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, UK Plug, 650 W, 100 - 240 V, 50/60 Hz, 10 - 6 A, 10 A, 6 A
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Key Features
- ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold
- Main Japanese capacitors
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact design
Specifications
Power
Total power*
650 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
10 - 6 A
Maximum input current (@110V)
10 A
Maximum input current (@220V)
6 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
90 W
Combined power (+12V)
650 W
Combined power (+5V)
650 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
18 A
Max output current (+12V)
54.2 A
Max output current (+5V)
18 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
18 A
Power Good signal delay range
100 - 150 ms
Power protection features
Over power, Overcharge, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
6
SATA power cable length
120,500 mm
Peripheral (Molex) power connectors (4-pin)*
3
Peripheral (Molex) power cable length
150 mm
PCI Express power connectors (6+2 pin)
2
PCI Express power cable length
50 cm
CPU P4 connector (4-pin)
1
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
Ports & interfaces
ATX power connector (20+4 pin)
Yes
Floppy disk drive connector
Yes
Cabling type
Non-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
HYB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Weight & dimensions
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
1.76 kg
Packaging data
Package width
260 mm
Package depth
110 mm
Package height
180 mm
Package weight
1.92 kg
Package type
Box
Logistics data
Warranty period
5 year(s)
Additional Information
| EAN/UPC | 4719331556822 |
|---|---|
| MPN | GP-P650G PG5 |
| BRAND | Gigabyte |
