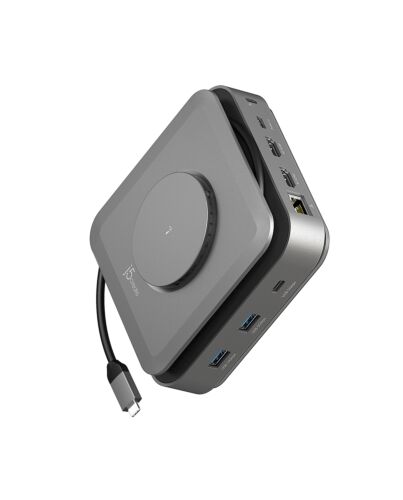

j5create JCD3199 USB-C® Dock Dual 4K HDMI™, Space Grey

£92.69
j5create JCD3199 USB-C® Dock Dual 4K HDMI™, Space Grey, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 140 W, 2.0/2.1, 3.5 mm, 1000 Mbit/s
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

This compact multi-port dock is ideal for office application, featuring everything f the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV.
With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

Key Features

  • Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
  • Supports Power Delivery 3.1 140W power in
  • Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
  • Built-in magnetic wireless charger provides up to 15W fast wireless charging. Compatible with iPhone® MagSafe®, Samsung® S23/S22/S21, Google™ Pixel™ 5/6/7, AirPods®, and more. The 15W wireless charging will only work when a USB-C® 60W or above power adapter is connected to the dock
  • Reliable network connectivity via the Gigabit Ethernet
  • Cable storage compartment
  • Security lock

Specifications

Ports & interfaces

Connectivity technology*
Wired
Host interface*
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
140 W
HDMI ports quantity*
2
HDMI version
2.0/2.1
Microphone in*
Yes
Combo headphone/mic port
Yes
Headphone outputs*
1
Headphone connectivity
3.5 mm
USB Type-C DisplayPort Alternate e
Yes

Network

Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
1000 Mbit/s

Performance

Colour name
Space Grey
Card reader integrated*
Yes
Compatible memory cards
MicroSD (TransFlash), SD
Data transfer rate
10 Gbit/s
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
Product colour*
Grey
Housing material
Aluminium
Country of origin
Taiwan

Power

Power source type
USB
Power connector
USB Type-C
Input current
5 A
Output voltage
20 V
Output current
5 A
Wireless charging
Yes
Wireless charging power
15 W

Software

Windows operating systems supported
Yes
Mac operating systems supported
Yes

Software

Mobile operating systems supported
Yes

Operational conditions

Operating temperature (T-T)
-1 - 41 °C
Storage temperature (T-T)
-17 - 68 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Width
130 mm
Depth
130 mm
Height
40 mm
Weight
416 g

Packaging data

Quantity per pack
1 pc(s)
Package width
154 mm
Package depth
170.5 mm
Package height
56 mm
Package weight
740 g

Packaging content

AC adapter included
No
Quick start guide
Yes
Manual
No
Packaging content
1 - JCD3199 USB-C® Dock Dual 4K HDMI™ 1 - Dock Holder 1 - Quick Installation Guide (QIG)
User guide
No
Stand included
Yes

Technical details

Master (outer) case GTIN (EAN/UPC)
20847626000762
Warranty period
2 year(s)
Compliance certificates
CE, REACH, RoHS

Logistics data

Products per master (outer) case
4 pc(s)
Master (outer) case width
186 mm
Master (outer) case length
249 mm
Master (outer) case height
174 mm
Master (outer) case gross weight
3.2 kg
Export Control Classification Number (ECCN)
EAR99

Other features

Cable length
0.695 m

Additional Information

More Information
EAN/UPC 4712795087666
MPN JCD3199-N
BRAND J5CREATE
