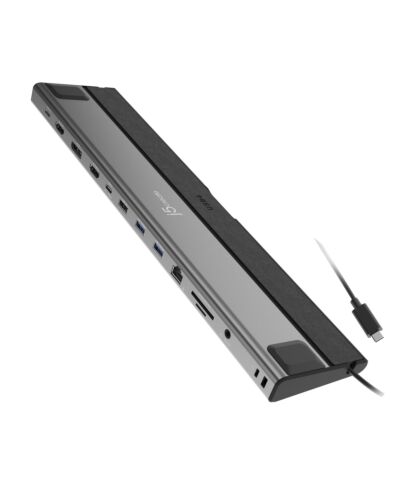

j5create JCD554 USB4® Triple 4K Display Docking Station, Black
£135.77
j5create JCD554 USB4® Triple 4K Display Docking Station, Black, Wired, USB4, 85 W, 10,100,1000 Mbit/s, Black, Grey, MicroSD (TransFlash), SD
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller f Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution. With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™, HDMI™ or USB-C® and access data faster without affecting system performance. Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W passthrough power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.
Key Features
- Includes the latest Intel® USB4® controller ensures industry-leading quality
- Provides 3 USB™ ports and a USB-C® port to offer ultimate connectivity and performance
- Integrates a Gigabit Ethernet port, SD™ / microSD™ 4.0 card reader, and audio combo
- Offers up to 85W of pass-through charging
- Plug & Play, compatible with Windows® and macOS®
- Security Lock Design
- Supports up to MST three 4K displays with Thunderbolt™ 4 or USB4® host laptops
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
USB4
USB 2.0 ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
85 W
HDMI ports quantity*
2
DisplayPorts quantity
1
Microphone in*
Yes
Combo headphone/mic port
Yes
Headphone outputs*
1
USB Type-C DisplayPort Alternate e
Yes
Network
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Card reader integrated*
Yes
Compatible memory cards
MicroSD (TransFlash), SD
Data transfer rate
10 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
3
Maximum refresh rate
144 Hz
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour*
Black, Grey
Display es
Extended, Mirror
Hub interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Plug and Play
Yes
Housing material
Aluminium
Country of origin
Taiwan
Power
Power source type
USB
Input current
3 A
Output voltage
20 V
Output current
4.25 A
Power consumption (typical)
4.5 W
Power plug type
Type C
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
-1 - 41 °C
Storage temperature (T-T)
-17 - 68 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Width
344 mm
Depth
23.6 mm
Height
81.4 mm
Weight
463 g
Packaging data
Quantity per pack
1 pc(s)
Package width
88.3 mm
Package depth
358 mm
Package height
28 mm
Package weight
574 g
Packaging content
Quick start guide
Yes
Packaging content
1 - JCD554 USB4® Triple 4K Display Docking Station
1 - Quick Installation Guide (QIG)"
Technical details
Master (outer) case GTIN (EAN/UPC)
24712795088186
Warranty period
2 year(s)
Compliance certificates
CE, REACH, RoHS
Logistics data
Products per master (outer) case
4 pc(s)
Master (outer) case width
150 mm
Master (outer) case length
398 mm
Master (outer) case height
123 mm
Products per shipping (inner) case
2 pc(s)
Export Control Classification Number (ECCN)
EAR99
Master (outer) case net weight
2.8 kg
Shipping (inner) case width
6.6 cm
Shipping (inner) case length
38 cm
Shipping (inner) case height
9.9 cm
Shipping (inner) case net weight
1.2 kg
Other features
Cable length
0.5 m
Additional Information
| EAN/UPC | 4712795088182 |
|---|---|
| MPN | JCD554-N |
| BRAND | J5CREATE |
