j5create JCA366-N USB-C™ to 4-Port HDMI™ Multi-Monitor Adapter, Silver
£73.03
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

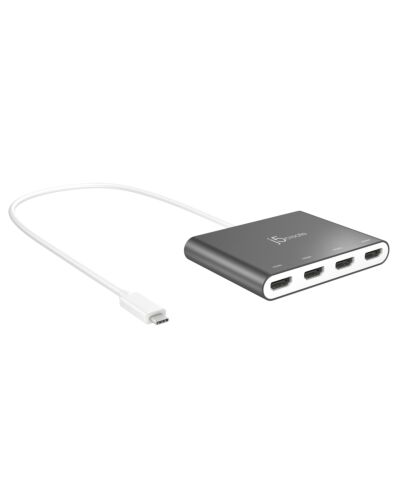

The USB-C® to 4-port HDMI™ Multi-Monitor Adapter functions as an external video card for your MacBook® or personal computer. It allows you to add four additional monitors/displays through your USB-C® port. This is the perfect alternative to a costly video card. With the JCA366, you can quickly install the driver with a simple USB-C® plug-in. Afterwards, connect your device to your monitors using HDMI™ cables and you have just created a new visual environment in seconds. With this multi-monitor adapter, you can extend your desktop across multiple displays, one screen onto another, and have individual applications displayed on each monitor. You can also enable additional features with the Multi-Monitor Assistant Application for your Windows® devices.
Key Features
- INCREASE PRODUCTIVITY WITH MULTIPLE DISPLAY ES:
- Multitask with a larger landscape/desktop space. Move and view your large programs across four screens without overlapping windows. Ideal for viewing multiple windows at the same time to enhance productivity for standard business applications.
- FREE APPLICATION - QUICKLY ASSIGN MULTIPLE WINDOWS:
- The Multi-Monitor Assistant application assists with dragging, dropping, zooming in & out, cursor display cycle, cascading windows to the main display and windows expansion cycle on multiple monitors with simple moves (Currently available for Windows® only).
- 1080p HDMI™ RESOLUTION WITH STEREO AUDIO:
- 1920 x 1080 @ 60 Hz, with 1080p Video Playback; Display Rotation: 0°, 90°, 180° & 270°. HDMI™ ports support 48 kHz imbedded audio.
- MINIMIZE SYSTEM RESOURCES:
- Easily add additional displays through the USB-C® to HDMI™ connection without adding an expensive, internal video card that makes installation complicated.
- FAST INSTALLATION:
- Simply install the driver, plug-in the USB-C® and it’s ready to go.
- NO EXTERNAL POWER REQUIRED:
- USB™ powered by the computer, over SuperSpeed USB™ 3.0 / 3.1
Features
Increase productivity with
multiple display es
Multitask with a larger landscape/desktop space. Move and view your large spreadsheets across four screens without overlapping windows. Ideal for viewing multiple windows at the same time to enhance productivity f standard business applications.1080P HDMI™ RESOLUTION WITH STEREO AUDIO
1920 x 1080 @ 60 Hz, with 1080P Video Playback; Display Rotation: 0°, 90°, 180° & 270°
4 HDMI™ ports simultaneously support 48 kHz imbedded audio.
Supports 4 Display es
Mirror e is used to one screen onto another, ideal for presentations. Extended e allows you to extend your desktop across multiple displays, great for spreadsheets. Primary e allows you to have individual applications open on each monitor, vastly improving productivity. Display Rotation allows you to view an image or report vertically, perfect for x-ray film.
FAST INSTALLATION
Simply install the driver and plug in the USB-C™,then it’s ready to go.
Specifications
Performance
USB connector type
USB Type-C
USB connector gender
Male
USB connector form factor
Straight
USB version*
3.2 Gen 1 (3.1 Gen 1)
DVI output*
No
HDMI output*
Yes
DisplayPort output*
No
Number of displays supported*
4
HDMI ports quantity
4
Maximum resolution
1920 x 1080 pixels
Refresh rate at maximum resolution
60 Hz
Maximum resolution (HDMI)
1920 x 1080 pixels
Supported graphics resolutions
1920 x 1080 (HD 1080)
Supported video es
1080p
Extended display e
Yes
Data transfer rate (max)
5 Gbit/s
Current
0.9 A
Design
Product colour
Silver
Housing material
Aluminium
Integrated USB cable
Yes
Power
Power consumption (max)
4.5 W
Output voltage
5 V
System requirements
Windows operating systems supported
Windows 10
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Linux operating systems supported
No
Minimum processor family
Core i5, Core i7
Minimum RAM
4 GB
Weight & dimensions
Width
101.5 mm
Depth
16 mm
Height
79.5 mm
Weight
152.5 g
USB cable length
0.5 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 71 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Packaging data
Package width
193 mm
Package depth
125 mm
Package height
22.5 mm
Package weight
217.5 g
Packaging content
Quick installation guide
Yes
Manual
Yes
Packaging content
1 x JCA366 USB-C® to 4-Port HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide
Technical details
Warranty period
2 year(s)
Logistics data
Products per master (outer) case
18 pc(s)
Master (outer) case GTIN (EAN/UPC)
24712795083938
Master (outer) case width
226 mm
Master (outer) case length
445 mm
Master (outer) case height
190 mm
Master (outer) case gross weight
4.86 kg
Country of origin
Taiwan
Export Control Classification Number (ECCN)
EAR99
Additional Information
| EAN/UPC | 4712795083934 |
|---|---|
| MPN | JCA366-N |
| BRAND | J5CREATE |
