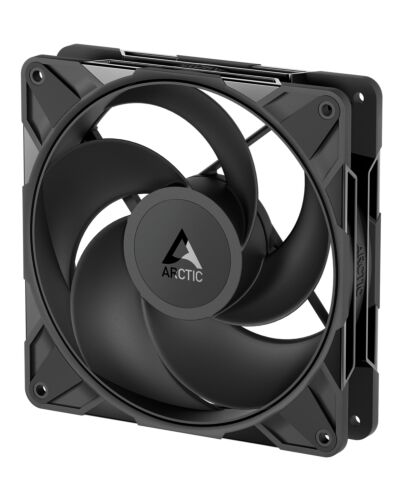

ARCTIC Freezer P14 Pro Reverse - 140 mm A-RGB PWM Fan with Cable Splitter

Name: ARCTIC Freezer P14 Pro Reverse - 140 mm A-RGB PWM Fan with Cable Splitter
Brand: ARCTIC
SKU: MAZ-0000040464
Price: 6.23 GBP
Availability: InStock

Be the first to review this product

£6.23

ARCTIC Freezer P14 Pro Reverse - 140 mm A-RGB PWM Fan with Cable Splitter, Fan, 14 cm, 166.5 m³/h, Black

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes f 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

Reasons To Buy

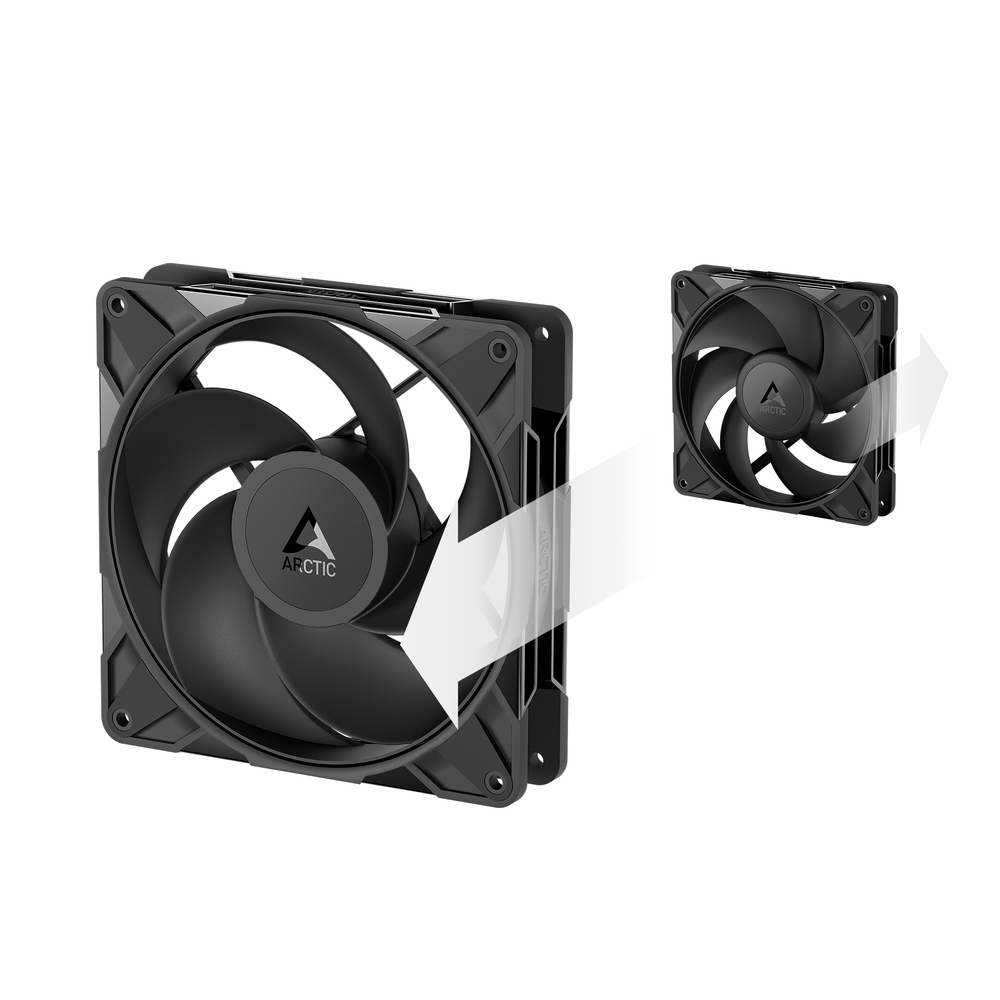

Reversed Airflow

The P14 Pro Reverse is specifically designed for air intake f the back side. It's particularly suitable when conventional fans would compise the aesthetics.

Optimized Airflow Design

The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise.

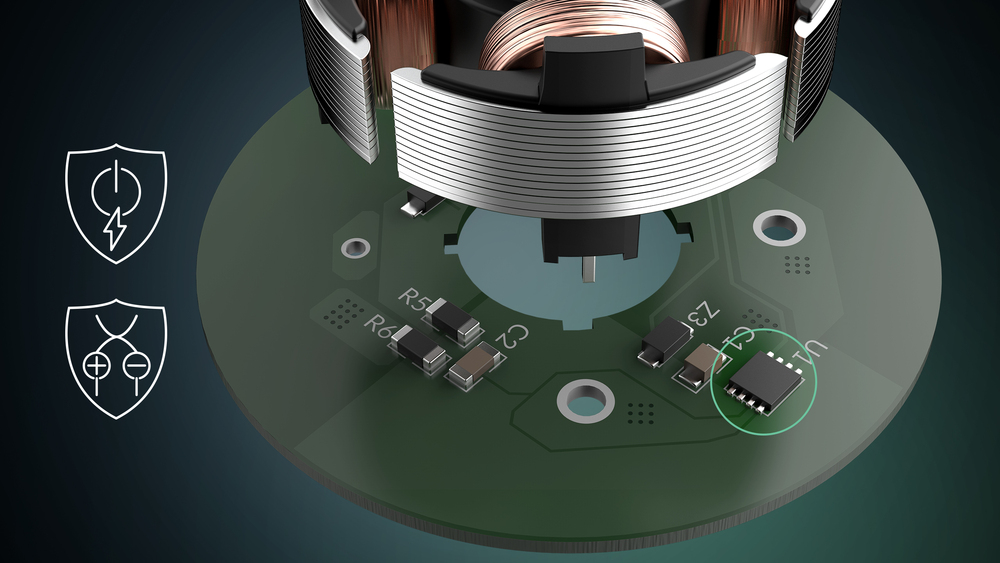

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.

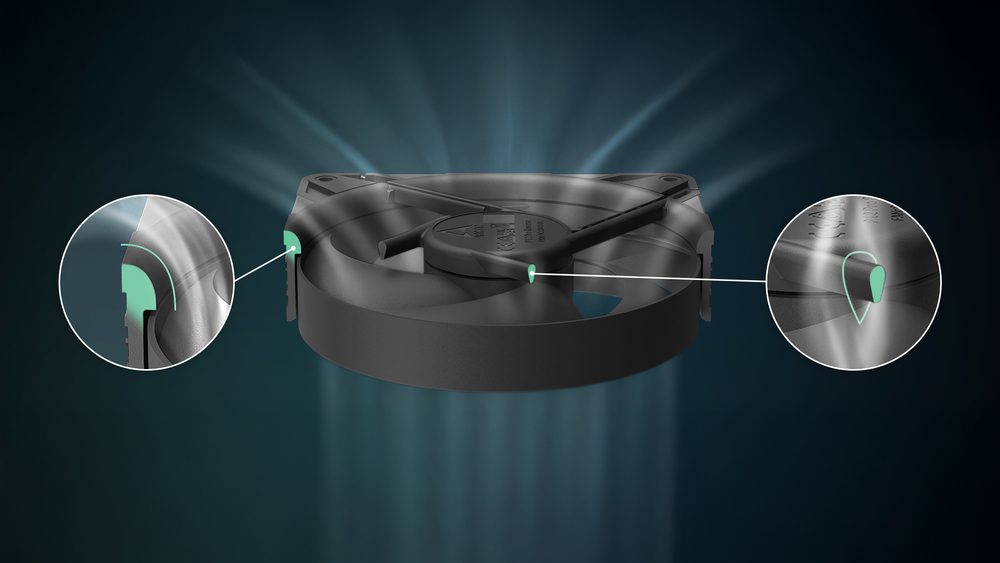

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

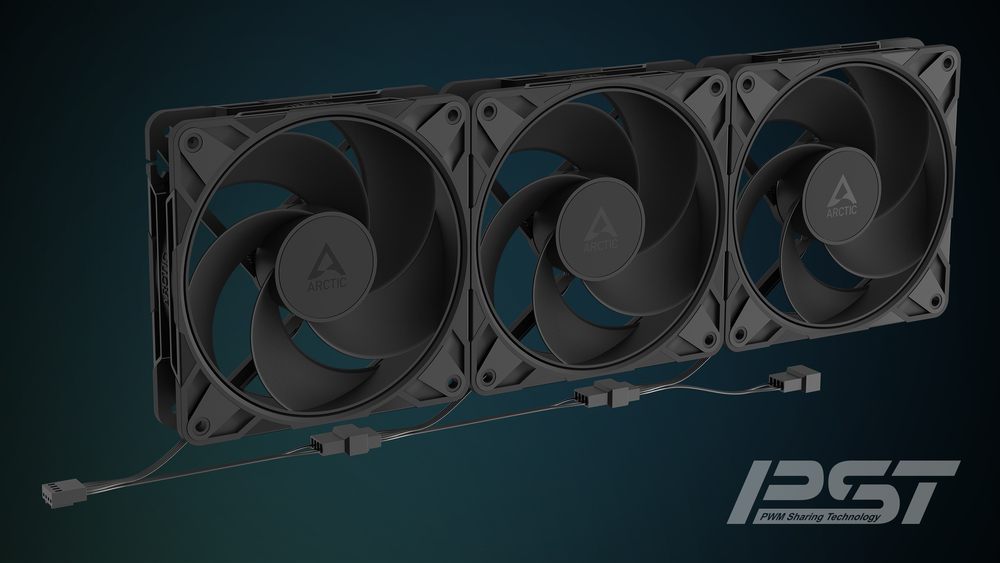

PST – Easy Cable Management and Synchronized PWM Control

Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.

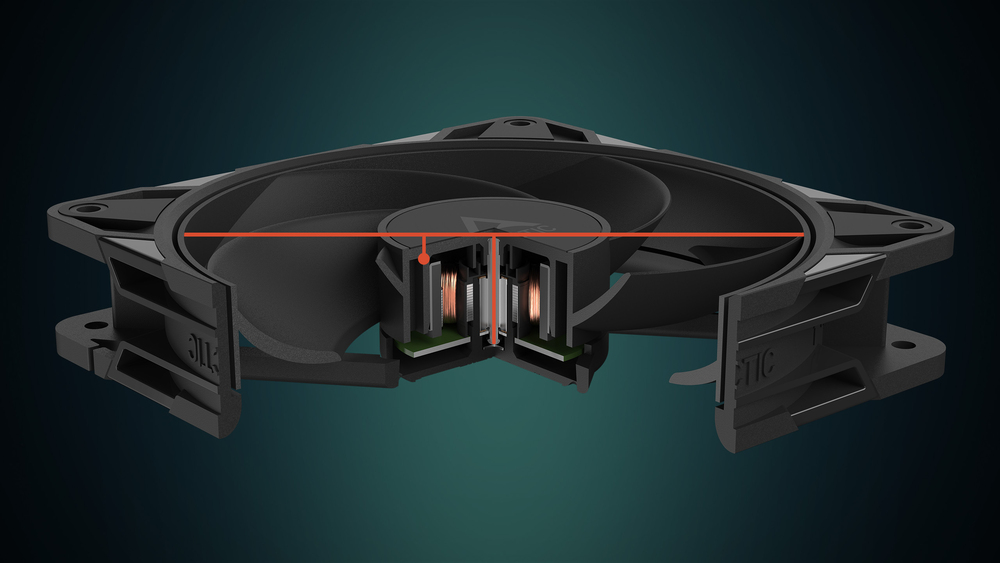

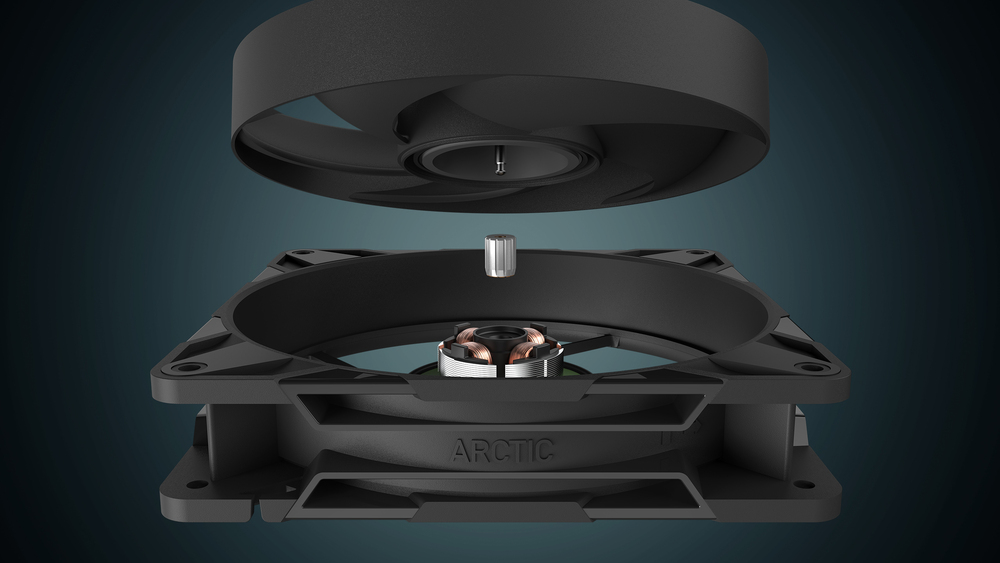

Optimized FDB Bearing-Shaft Design

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

6-Year Warranty – Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn’t just a pise – it’s a testament to our confidence in their durability.

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

14 cm

Maximum airflow

98 cfm

Airflow

166.5 m³/h

Maximum air pressure

5.1 mmH2O

Pulse-width ulation (PWM) support

Yes

Bearing type

Fluid Dynamic Bearing (FDB)

Quantity per pack

1 pc(s)

Fan speed (min)

400 RPM

Fan speed (max)

2650 RPM

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

Black

Number of fan blades

Fan connector

4-pin + 4-pin

Power

Rated voltage

12 V

Starting voltage

4 V

Rated current

0.4 A

Weight & dimensions

Fan dimensions (W x D x H)

140 x 140 x 30 mm

Fan weight

248 g

Cable length

0.48 m

Package width

145 mm

Package depth

145 mm

Package height

35 mm

Package weight

285 g

Packaging content

Package type

Box

Screws included

Yes

Number of screws

Additional Information

More Information
EAN/UPC	4895265000744
MPN	ACFAN00329A
BRAND	ARCTIC
