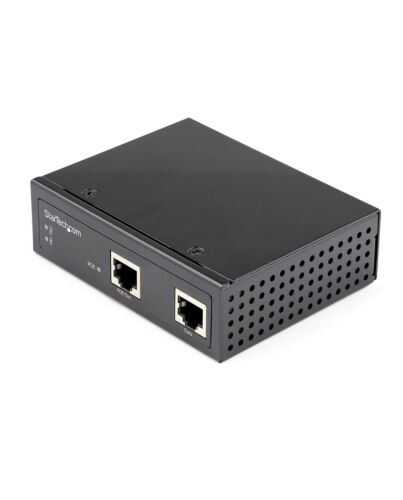

StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC D
£194.68
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications
Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
The StarTech.com Advantage
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications
Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
The StarTech.com Advantage
Key Features
- WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible with IEEE 802.3bt (PoE++) and previous 90W proprietary POE standards including Cisco uPoE, Bosch & AXIS
- 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
- TECH SPECS: 1 Gbps; 52V-56VDC Power Input; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 90W max, uPoE, 10/100/1000 Mbps Auto Negotiation, DIN/Wall Mountable, Redundant Power Input
- ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C; Vibration, shock & free fall rated; Rugged IP-30 aluminum housing; Hardened operating temp of -40C to 75C
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA compliant PoE Injector is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
Performance
Type*
Network repeater
Maximum transfer distance*
100 m
Data transfer rate
1000 Mbit/s
Chipset
Microsemi PD69204
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDIX IEEE
Yes
Jumbo frames support
Yes
Auto-negotiation
Yes
Duplex system
Full
International Protection (IP) code
IP30
Mean time between failures (MTBF)
540891 h
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Ports & interfaces
Power over Ethernet (PoE) ports quantity
2
Terminal block port
Yes
Design
Product colour*
Black
Housing material
Aluminium
LED indicators
Yes
Certification
CE, FCC, UL
Management features
Supported network protocols (IPv4)
CSMA/CD
Power
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
90 W
Power plug type
Type N
Power
Power over Ethernet (PoE) voltage range
48 - 56 V
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
32 mm
Depth
82 mm
Height
104 mm
Weight
174 g
Packaging content
Quick start guide
Yes
Packaging data
Package width
211 mm
Package depth
162 mm
Package height
64 mm
Package weight
416 g
Certificates
Compliance certificates
CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 0065030889568 |
|---|---|
| MPN | POEINJ1G90W |
| BRAND | STARTECH |
