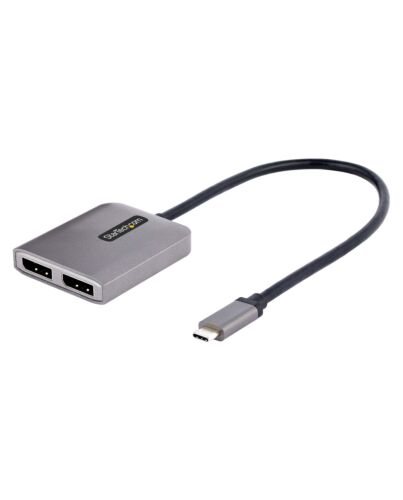

StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz D
£29.47
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors
This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate e (DP Alt e) capable USB-C host device.
4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection
Maximum Resolution
Output 1
Maximum Resolution
Output 2
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
5K 60Hz
5K 60Hz
*Intel 11th Gen with DSC
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 60Hz
4K 60Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Intel 8th - 10th Gen Processors & Later
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored e. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
Windows devices supporting DP Alt e over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate e (DP Alt e) capable USB-C host device.
4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection
Maximum Resolution
Output 1
Maximum Resolution
Output 2
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
5K 60Hz
5K 60Hz
*Intel 11th Gen with DSC
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 60Hz
4K 60Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Intel 8th - 10th Gen Processors & Later
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored e. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
Windows devices supporting DP Alt e over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
Key Features
- MULTI-MONITOR CONFIGURATION: USB Type-C to Dual DisplayPort MST Hub/Splitter drives up to two 5K 60Hz displays f a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Dual 5K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU
- EXTRA LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual DisplayPort Adapter
Specifications
Performance
USB connector type
USB Type-C
USB connector gender
Male
USB connector form factor
Straight
DVI output*
No
High Dynamic Range (HDR) supported
Yes
HDMI output*
No
DisplayPort output*
Yes
Number of displays supported*
2
DisplayPorts quantity
2
HDCP
Yes
HDCP version
2.2
DisplayPort version
1.4
Maximum resolution
4096 x 2160 pixels
Refresh rate at maximum resolution
60 Hz
Audio output channels
2.0 channels
Chipset
Synaptics - VMM5220, VIA/VLI - VL103
Design
Product colour
Grey
Housing material
Plastic
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Weight & dimensions
USB cable length
0.3 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Packaging data
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
108.8 g
Technical details
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Logistics data
Products per master (outer) case
70 pc(s)
Master (outer) case width
473 mm
Master (outer) case length
331 mm
Master (outer) case height
440 mm
Additional Information
| EAN/UPC | 0065030884372 |
|---|---|
| MPN | MST14CD122DP |
| BRAND | STARTECH |
