StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustab
£240.26

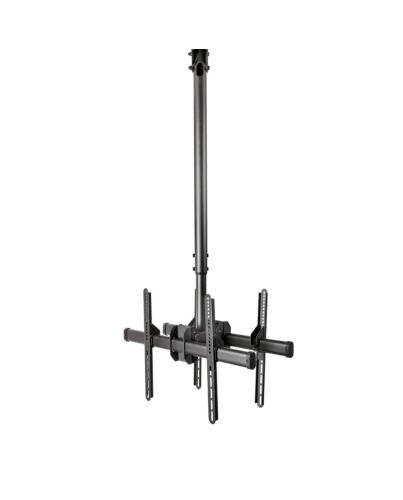

StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustable Telescopic Pole - Tilt/Swivel/Rotate - VESA Bracket for 32”-75" Displays, 90 kg, 81.3 cm (32"), 190.5 cm (75"), 200 x 200 mm, 600 x 400 mm, 1060 - 1560 mm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Dual Display Mount | Full Motion | For 32" to 75" Displays
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance f the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend f 41.7" to 61.4" (1060 to 1560 mm) f the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accomates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance f the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend f 41.7" to 61.4" (1060 to 1560 mm) f the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accomates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- BACK TO BACK DUAL 75" TV CEILING MOUNT: Heavy-duty VESA compatible ceiling mount supports displays incl. curved TVs up to 75" (110lb/50kg) per screen; Height adjustable pole, 3.5' (1,0m) to 5.0' (1,5m) f ceiling
- WIDE RANGE OF MOTION: Ceiling TV mount allows for both displays to be swiveled 360° around the telescopic pole, and individually rotated +/-3° & tilted +5/-20°; TV position secured w/ provided tools
- VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for multiple screens allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
- COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- TIDY AESTHETIC: The double television ceiling mount for two large displays provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications
Features
Securely hang your flat-panel displays f a flat or sloped ceiling
Captivate and engage customers in your store, deliver timely information in waiting rooms and lobbies, or provide arrivals and departures in airports and other transportation terminals. This versatile ceiling mount enables you to mount two flat-panel displays on almost any type of ceiling angle. With its flexible design, you can position your displays at the perfect angle, ensuring optimal visibility f every corner of the room.
Dual Display Ceiling Mount | Full Motion | For 32" to 75" Displays
Back-to-Back TV Mount
The dual-screen mount securely holds two flatscreen TVs back to back, in landscape position.The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 99.6 lb. (45 kg) per display.
The pole-mount TV bracket can extend f 41.7" to 61.4" (1060 to 1560 mm), with a total lift (height extension) of 19.7" (500 mm).
Swivels to Suit Your Ceiling
The flat-screen ceiling mount accomates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.Cable management is made easy by routing the cables through the pole and into the ceiling to create a clean and organized appearance, eliminating cable clutter.
Viewable f Any Direction
You can adjust your displays to create a comfortable viewing angle, by tilting them +5 degrees up or -20 degrees down towards your audience for optimum visibility.Plus, the full-motion mount lets you swivel your displays around the pole +180 / -180 degrees, without using tools.
| Ceiling TV Mount for Back-to-Back Displays | Ceiling TV Mount | Ceiling TV Mount | Ceiling TV Mount | |
| Number of Displays Supported | 2 | 1 | 1 | 1 |
| Display Size | 32" to 75" | 32" to 75" | 32" to 75" | 32" to 75" |
| Max Weight (Per Display) | 99lb (45kg) | 110lb (50kg) | 110lb (50kg) | 110lb (50kg) |
| Display Tilt | +5° / -20° | +0° / -25° | +0° / -25° | +0° / -25° |
| Display Swivel/Pivot | +180° / -180° | +180° / -180° | +180° / -180° | +180° / -180° |
| Mount Swivel for Mounting Surface | +60° / -60° | +60° / -60° | +60° / -60° | +60° / -60° |
| Height Range | 42" - 61" (1060 - 1560mm) | 98.4" - 117.6" (2500 - 3000mm) | 22" - 35.8" (560 - 910mm) | 42" - 61" (1060 - 1560mm) |
| Supports Curved Displays | Yes | Yes | Yes | Yes |
| Additional Features | Cable Management | Cable Management | Cable Management | Cable Management |
Specifications
Mounting
Maximum weight capacity*
90 kg
Minimum screen size
81.3 cm (32")
Number of displays supported*
2
Maximum weight capacity (per display)*
45 kg
Maximum screen size*
190.5 cm (75")
Mounting type*
Ceiling
Minimum VESA mount*
200 x 200 mm
Maximum VESA mount*
600 x 400 mm
Panel mounting interface
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Ergonomics
Height adjustment
Yes
Height adjustment range
1060 - 1560 mm
Tilt angle range
-20 - 5°
Swivel angle range
-180 - 180°
Angle of rotation
360°
Adjustable
Yes
Design
Product colour*
Black
Housing material
Steel
Anti-theft function
No
Weight & dimensions
Width
165 mm
Depth
680 mm
Depth (max)
68 cm
Height
835 mm
Weight
9.8 kg
Packaging data
Package width
310 mm
Package depth
935 mm
Package height
145 mm
Package weight
10.8 kg
Packaging content
Manual
Yes
Screws included
Yes
Number of screws
46
Wrench included
Yes
Nuts included
Yes
Number of nuts
2
Washers included
Yes
Number of washers included
12
Spacer included
Yes
Number of spacers included
32
Technical details
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Logistics data
Harmonized System (HS) code
85299097
Master (outer) case width
340 mm
Master (outer) case length
965 mm
Master (outer) case height
310 mm
Products per master (outer) case
2 pc(s)
Additional Information
| EAN/UPC | 0065030880671 |
|---|---|
| MPN | FPCEILBTB |
| BRAND | STARTECH |
