Computer Cables

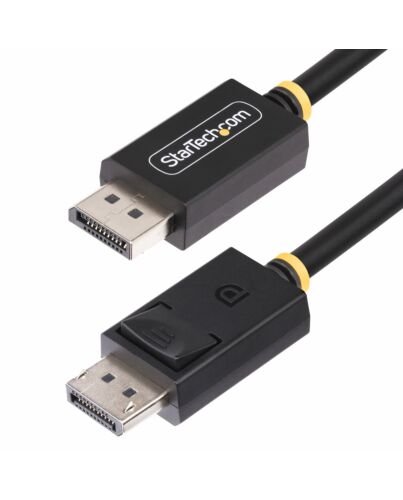

StarTech.com 3m (10ft) DisplayPort 2.1 Cable, VESA DP40 DisplayPort Cable w/UHBR10/HDR/HDCP 2.2, 8K
£23.66
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Facilitate higher refresh rates and 8K 60Hz video on UHBR10-enabled DisplayPort devices
Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA- DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP40 DisplayPort cable supports the following DP 2.1 features:
• Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
• UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA- DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP40 DisplayPort cable supports the following DP 2.1 features:
• Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
• UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
Key Features
- HIGH PERFORMANCE: DP 2.1 Cable is designed for UHBR10-enabled DisplayPort devices; DP40 supports 40Gbps for 8K 60Hz video w/DSC and 32-channel audio; Latching DP connectors; Flexible TPE jacket routes easily through tight spaces
- FULL DP COMPATIBILITY: DP 2.1 Cable is VESA for guaranteed performance and compatibility with DP 2.1 devices, ensuring reliable signal consistency and smooth video playback on any DisplayPort display; Backward compatible with DP 2.0/1.4/1.2
- QUALITY CONSTRUCTION: Nickel-plated ends rated beyond 10,000 insertions; Latching DP connectors w/strain reliefs prevent accidental disconnection; Braided aluminum shield for enhanced EMI protection; TPE jacket is durable, halogen-free, and RoHS compliant
- VERSATILE PERFORMANCE: DisplayPort 2.1 DP40 supports 40Gbps across four UHBR10 (10Gbps) lanes to enable consistent high throughput; Ideal for 8K displays, high performance GPUs, MST multi-monitor daisy chains, and docking stations; Supports 32-ch audio
- SPECS: Black; 3-meter (10-foot); VESA- DisplayPort 2.1; DP40 (40Gbps); Supports UHBR10/HDR/MST/DSC 1.2/HDCP 2.2; 8K 60Hz w/DSC, 4K 144Hz, 1440p 240Hz; 32-ch Audio; Backward Compatible w/DP 2.0/1.4/1.2; 30AWG; 8.2mm (0.32in) O.D.
Specifications
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Nickel
DisplayPort version
2.1
Maximum resolution*
7680 x 4320 pixels
Supported graphics resolutions
2560 x 1440, 3840 x 2160, 7680 x 4320
Maximum refresh rate
240 Hz
HDCP
Yes
HDCP version
2.2
Display Stream Compression (DSC)
Yes
Display Stream Compression (DSC) version
1.2a
Cable length*
3 m
Connector 1*
DisplayPort
Connector 2*
DisplayPort
Connector 1 gender*
Male
Connector 2 gender*
Male
Latching connectors
Yes
Product colour*
Black
Cable material
Copper
Cable shielding
Aluminum mylar foil
Jacket material
Thermoplastic elastomer (TPE)
AWG wire size
30
High Dynamic Range (HDR) supported
Yes
Features
Data transfer rate
40 Gbit/s
Channels quantity
32 channels
Multi-Stream Transport (MST)
Yes
Fire-resistance rating
VW-1
Cable type
Round cable
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Cable diameter
8.2 mm
Weight
275 g
Packaging data
Package width
220 mm
Package depth
200 mm
Package height
41 mm
Package weight
287 g
Logistics data
Master (outer) case width
500 mm
Master (outer) case length
320 mm
Master (outer) case height
210 mm
Products per master (outer) case
30 pc(s)
Additional Information
| EAN/UPC | 0065030920568 |
|---|---|
| MPN | DP21-3M-DP40-CABLE |
