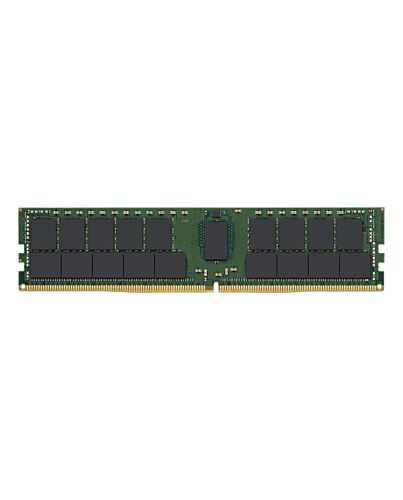

Kingston Technology KSM32RD4/64HD memory ule 64 GB 1 x 64 GB DDR4 3200 MT/s 288-pin DIMM ECC
£867.54
Kingston Technology KSM32RD4/64HD, 64 GB, 1 x 64 GB, DDR4, 288-pin DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Kingston's KSM32RD4/64HD is a 8G x 72-bit (64GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory ule, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
parity, 2Rx4, ECC, memory ule, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key Features
- Power Supply: VDD = 1.2V
- VDDQ = 1.2V
- VPP = 2.5V
- VDDSPD = 2.41V to 2.75V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
- the banks in the same or different bank group accesses are available
- Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Supports ECC error correction and detection
- On-Die Termination (ODT)
- Temperature sensor with integrated SPD
- This product is in compliance with the RoHS directive
- Per DRAM Addressability is supported
- Internal Vref DQ level generation is available
- Write CRC is supported at all speed grades
- CA parity (Command/Address Parity) e is supported
Specifications
Features
Buffered memory type
Registered (buffered)
CAS latency
22
Internal memory*
64 GB
Memory layout (ules x size)*
1 x 64 GB
Internal memory type*
DDR4
Memory data transfer rate*
3200 MT/s
Component for*
Server
Memory form factor*
288-pin DIMM
ECC*
Yes
Memory ranking
2
Memory voltage
1.2 V
ule configuration
8192M x 72
Row cycle time
45.75 ns
Features
Row active time
32 ns
SPD profile
Yes
Programming power voltage (VPP)
2.5 V
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
Additional Information
| EAN/UPC | 740617348200 |
|---|---|
| MPN | KSM32RD4/64HD |
