Networking

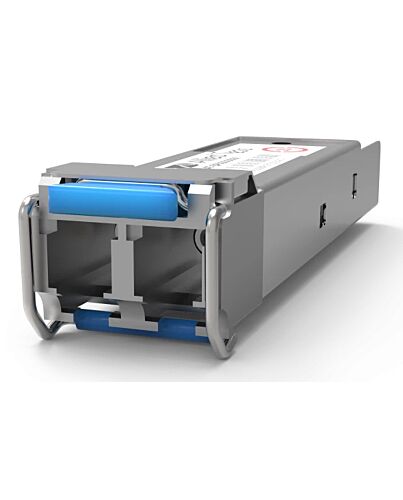

Allied Telesis B-AT-SPFX/2-90 network transceiver ule Fiber optic 100 Mbit/s SFP
£80.54
Allied Telesis B-AT-SPFX/2-90, Fiber optic, 100 Mbit/s, SFP, LC, 2000 m, 1310 nm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
SP100Mbps Series Small Form-Factor Pluggable ules
The Allied Telesis 100Mbps SP Series offers the latest industry standard in flexible, full-duplex, Fast Ethernet connectivity. These hot-swappable interfaces simply plug into the SFP slot on all SFP-compatible products. Configuration can be optimized to meet a wide variety of distance and service requirements.
Options
Allied Telesis SP 100Mbps Series Small Form-Factor Pluggables (SFPs) offers short-haul and long-haul. This flexibility allows network managers to easily extend network distance and bandwidth.
Compatibility
SP 100Mbps Series SFPs are Multurcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP 100Mbps Series to be used with other MSA-compliant platforms that support SFP uplink connections.
The Allied Telesis 100Mbps SP Series offers the latest industry standard in flexible, full-duplex, Fast Ethernet connectivity. These hot-swappable interfaces simply plug into the SFP slot on all SFP-compatible products. Configuration can be optimized to meet a wide variety of distance and service requirements.
Options
Allied Telesis SP 100Mbps Series Small Form-Factor Pluggables (SFPs) offers short-haul and long-haul. This flexibility allows network managers to easily extend network distance and bandwidth.
Compatibility
SP 100Mbps Series SFPs are Multurcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP 100Mbps Series to be used with other MSA-compliant platforms that support SFP uplink connections.
Key Features
- Compact size
- Flexible architecture
- Plug and play for ease of use
- Self-locking mechanism
- MSA compliant
Specifications
Performance
SFP transceiver type*
Fiber optic
Maximum data transfer rate*
100 Mbit/s
Interface type*
SFP
Single-e fiber (SMF) supported
No
Multi-e fiber (MMF) supported
Yes
Fiber optic connector
LC
Maximum transfer distance
2000 m
Tx wavelength (max)
1310 nm
Rx wavelength (max)
1310 nm
Link budget
11 dB
Ethernet interface type
Fast Ethernet
Fiber ethernet cabling technology
100BASE
Duplex system
Full
Features
Product colour
Metallic
Form factor
SFP
Plug and Play
Yes
Features
Hot-swap
Yes
Easy to install
Yes
Certificates
Compliance certificates
Trade Agreements Act (TAA)
Operational conditions
Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 80%
Packaging content
Quantity per pack
1 pc(s)
Other features
Transmit power range
-20 - -14 dBmW
RX sensitivity
-31 dB
Additional Information
| EAN/UPC | 767035207728 |
|---|---|
| MPN | AT-SPFX/2-90 |
