Components

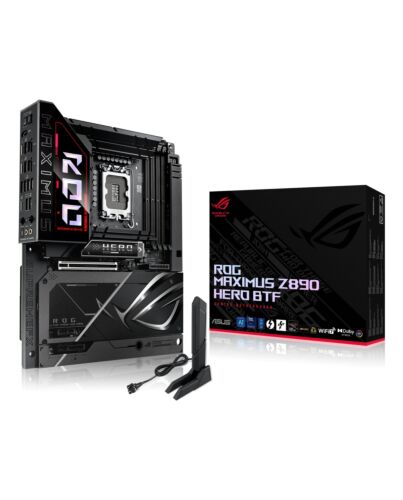

ASUS ROG MAXIMUS Z890 HERO BTF Intel Z890 LGA 1851 (Socket V1) ATX
£716.65
ASUS ROG MAXIMUS Z890 HERO BTF, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Intel® Z890 LGA 1851 ATX motherboard with a hidden-connector design and graphics card high-power slot for clean cable management, Advanced AI PC-ready, 22+1+2+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front-panel connector, ASUS AI Advr, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II.
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1851 (Socket V1)
Compatible processor series*
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
Thunderbolt headers
1
12V power connector
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
Ethernet LAN (RJ-45) ports*
2
HDMI ports quantity*
1
S/PDIF out port
Yes
Thunderbolt ports quantity
2
WiFi-AP antenna jack
1
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Network
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
Intel Z890
Audio chip
tek ALC4082
Audio output channels*
7.1 channels
Product colour
Black
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
6
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
5.0
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4.0
6th M.2 largest key size
2280
6th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
370 mm
Package depth
312 mm
Package height
108 mm
Package weight
4.62 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Antenna included
Yes
Drivers included
Yes
Additional Information
| EAN/UPC | 4711387847602 |
|---|---|
| MPN | 90MB1KG0-M0EAY0 |
