Data Input Devices

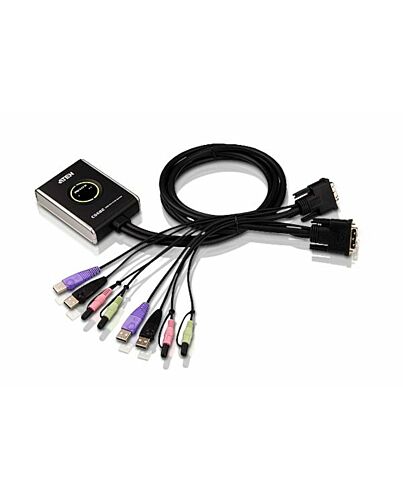

ATEN 2-Port USB DVI KVM Switch with Audio
£83.03
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS682 takes a giant step forward f prior els in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching f the desktop while the switch itself can be placed in a convenient, out of the way, location.
1x CS682 2-Port USB 2.0 DVI KVM Switch
1x Remote Port Selector
1x User Instructions
1x CS682 2-Port USB 2.0 DVI KVM Switch
1x Remote Port Selector
1x User Instructions
Key Features
- Superior video quality - up to 1920 x 1200 @ 60 Hz
- Computer selection via a remote port selector, hotkeys, and USB mouse
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Built-in all-in-one cables (2 x 1.2 m) and bus-powered design
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DVI-D
DVI-D ports quantity
2
Console ports*
3.5mm headphone, 3.5mm mic, DVI-D, USB A
Console USB ports quantity
2
USB 2.0 Type-A hub ports quantity
4
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
Performance
HD type*
WUXGA
Maximum resolution*
1920 x 1200 pixels
Video bandwidth
60 Hz
Scan interval
3,5,10,20 s
Design
Rack mounting*
No
Product colour*
Black
LED indicators
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
1.9 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
111.5 mm
Depth
78 mm
Height
24 mm
Weight
460 g
Packaging data
Package width
70 mm
Package depth
163 mm
Package height
235 mm
Package weight
590 g
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
4.6 kg
Harmonized System (HS) code
85176200
Master (outer) case width
395 mm
Master (outer) case length
405 mm
Master (outer) case height
182 mm
Master (outer) case gross weight
6.61 kg
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 4710423775909 |
|---|---|
| MPN | CS682 |
