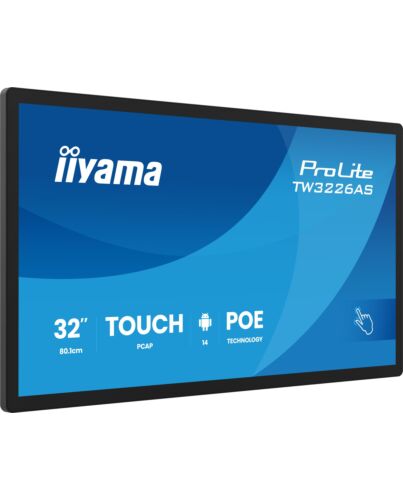

iiyama TW3226AS-B3P Signage Display Kiosk design 80 cm (31.5") LED Wi-Fi 430 cd/m² Full HD Black Tou
£736.56
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, ern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
Reasons To Buy
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.Specifications
Display
Panel type
VA
Display diagonal*
80 cm (31.5")
Display technology*
LED
Display resolution*
1920 x 1080 pixels
Display brightness*
430 cd/m²
HD type*
Full HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Multi-touch
Yes
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
4000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.3637 x 0.3637 mm
Active display area (W x H)
698.4 x 392.8 mm
Display diagonal (metric)
80.1 cm
Colour depth
8 bit
Surface hardness
3H
Ports & interfaces
HDMI ports quantity*
1
HDMI version
1.4
HDMI input ports quantity
1
DVI port*
No
USB port*
Yes
USB ports quantity
3
USB version
3.2 Gen 1 (3.1 Gen 1)
USB connector type
USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
DC-in jack
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
10 W
Design
Product design*
Kiosk design
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Bezel colour
Black
Performance
Purpose*
Universal
Operating hours (hours/days)
24/7
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
36.34 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Computer system
Built-in processor*
Yes
Computer system
Processor manufacturer
ARM
Processor family
ARM Rockchip
Processor el
Rockchip RK3576
Processor architecture
ARM Cortex-A53+Cortex-A72
Processor cores
8
Internal memory
4 GB
On-board graphics card el
Mali-G52 MC3
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
14
Google applications
Google Che, Gmail, Google Calendar
Weight & dimensions
Display width
735 mm
Display depth
35 mm
Display height
436 mm
Display weight
7.7 kg
Width
735 mm
Depth
35 mm
Height
436 mm
Weight
7.7 kg
Width (with stand)
735 mm
Depth (with stand)
35 mm
Height (with stand)
436 mm
Weight (with stand)
7.7 kg
Packaging data
Package width
833 mm
Package depth
126 mm
Package height
508 mm
Package weight
12.4 kg
Packaging content
Power adapter included
Yes
Cables included
AC
Mounting kit
Yes
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
User controls
Power switch, volume/ button +, volume/ button -
Sustainability certificates
ErP
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Quick start guide
Yes
AC adapter included
Yes
Audio output
Mini jack
Bluetooth
Yes
Bluetooth version
5.3
Viewable size, horizontal
69.8 cm
Viewable size, vertical
39.3 cm
Brightness
430 cd/m²
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
Power supply type
External
Cable management
Yes
Additional Information
| EAN/UPC | 4948570125708 |
|---|---|
| MPN | TW3226AS-B3P |
