Data Input Devices
ATEN 1-Local/Remote Share Access Single Port DVI KVM over IP Switch
£926.60
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

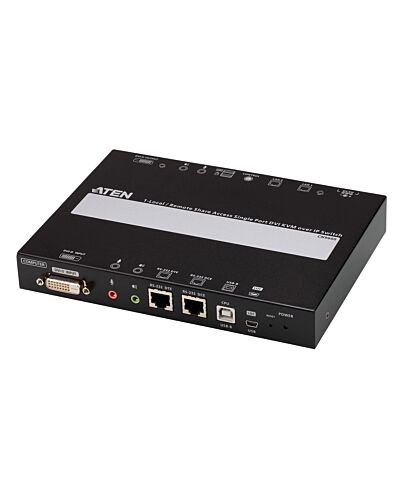

The CN9600 DVI KVM over IP Switch is a cost-efficient over-IP device, which allows remote access of digital video, audio and virtual media via remote control of a PC or workstation. The CN9600 enables over-IP capability by connecting compatible ATEN DVI KVM switch and/or LCD console, such as the CS1768 (8-Port USB DVI/Audio KVM Switch) or the CL3800 (DVI LCD Console).
1x CN9600 DVI KVM over IP Switch
1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
1x USB Cable (1.8 m/6 ft)
1x Power Adapter
1x Mounting Kit
1x User Instructions
1x CN9600 DVI KVM over IP Switch
1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
1x USB Cable (1.8 m/6 ft)
1x Power Adapter
1x Mounting Kit
1x User Instructions
Key Features
- Compact and slim design for space utility optimization
- Provides a FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response
- Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality*
- Local console provides USB keyboard and mouse support
- A mini USB port on the front panel serves as a Laptop USB Console (LUC) port
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Dual Power Supply for power backup
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Virtual Media support**
- High video resolution – up to 1920 x 1200 @ 60Hz for both local and remote consoles
- Audio support – microphone and speakers are supported on the local and remote console
Specifications
Ports & interfaces
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DVI-D
DVI-D ports quantity
2
USB 2.0 Type-B ports quantity
1
Console ports*
3.5mm headphone, DVI-D, USB A
Console USB ports quantity
2
USB connector type
Mini-USB B, USB Type-A
PS/2 ports quantity
1
Serial port type
RJ-45
Serial ports quantity
2
Audio connections
Yes
Headphone outputs
1
Number of microphone inputs
1
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Performance
Maximum resolution*
1920 x 1200 pixels
Video bandwidth
60 Hz
upgradeable
Yes
Design
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
5.55 W
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
154.9 mm
Depth
200 mm
Height
28.5 mm
Weight
1.24 kg
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
1.61 kg
Logistics data
Master (outer) case net weight
6.2 kg
Harmonized System (HS) code
85176200
Master (outer) case width
342 mm
Master (outer) case length
512 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
8.72 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264649271 |
|---|---|
| MPN | CN9600-AT-E |
