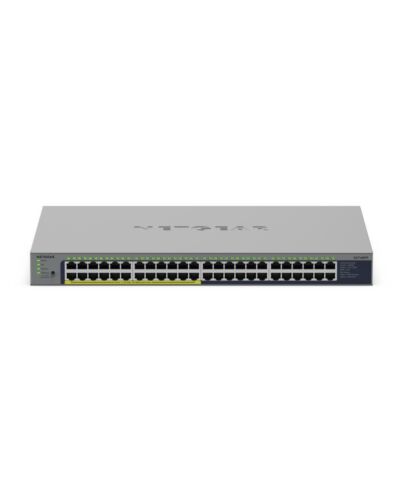

NETGEAR GS748PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
£583.08
NETGEAR GS748PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
POWER-OVER-ETHERNET
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Key Features
- 48 x Gigabit Ethernet ports with 24 ports of PoE+
- Plug and play switch, no management required
- Energy Efficient Ethernet for maximum power savings
- Dynamic fans for quiet operation
- Rackmount or desktop
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
MIB support
RFC 1213 MIB II, RFC 1643, RFC 1493
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
48
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Network
Networking standards*
IEEE 802.1p, IEEE 802.3az
Copper ethernet cabling technology
10BASE-T
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Ethernet LAN data rates
1000 Mbit/s
Data transmission
MAC address table*
8000 entries
Maximum data transfer rate
1 Gbit/s
Jumbo frames support
Yes
Jumbo frames
12.288
Packet buffer memory
1.5 MB
Design
Rack mounting*
Yes
Product colour
Grey
Redundant fans support
Yes
Number of fans
2 fan(s)
Safety
CE mark, cUL IEC950/EN60950
Performance
Mean time between failures (MTBF)
570972 h
Power
Power source*
AC/DC
AC input voltage
100 - 240 V
Power
AC input frequency
50/60 Hz
Input current
8 A
Power consumption (max)
410 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
380 W
Other features
Latency
2,900ns
Connectivity technology
Wired
Bandwidth
96 Gbit/s
I/O ports
48 x 10/100/1000 Mbps
4 x SFP
Electromagnetic emissions
CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick
Authentication method
802.1x
Warranty period
2 year(s)
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
34.2 BTU/h
Weight & dimensions
Width
440 mm
Depth
310 mm
Height
43 mm
Weight
4.6 kg
Certificates
Compliance certificates
CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI
Additional Information
| EAN/UPC | 606449174915 |
|---|---|
| MPN | GS748PP-100EUS |
