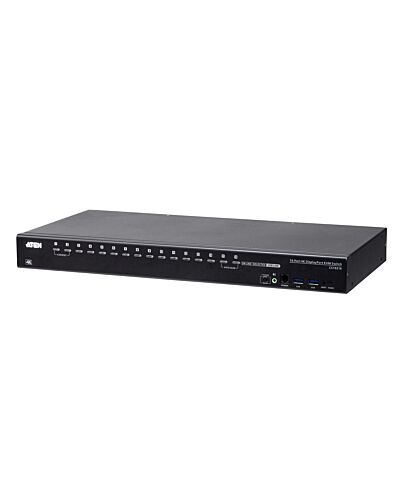

ATEN 16-Port USB 3.0 4K DisplayPort KVM Switch
£1,826.04
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
1x CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x LIN2-418K-E12G + 0AD8-8012-50M2 Power Adapter
1x User Instructions
1x CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x LIN2-418K-E12G + 0AD8-8012-50M2 Power Adapter
1x User Instructions
Key Features
- Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Cascadable to two levels – controls up to 256 computers
- Multi-Display feature – stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Specifications
Ports & interfaces
Number of computers controlled*
16
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPorts quantity
16
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
16
Console ports*
3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
Headphone outputs
17
Number of microphone inputs
17
DC-in jack
Yes
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
60 Hz
Scan interval
1,5,255 s
HDCP
Yes
Firmware upgradeable
Yes
Design
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
12 V
Power
Power consumption (typical)
26.66 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
432.4 mm
Depth
214.3 mm
Height
44 mm
Weight
4.18 kg
Packaging data
Package width
133 mm
Package depth
499 mm
Package height
324 mm
Package weight
5.33 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
12.5 kg
Harmonized System (HS) code
85176200
Master (outer) case width
427 mm
Master (outer) case length
519 mm
Master (outer) case height
348 mm
Master (outer) case gross weight
15.3 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4719264649264 |
|---|---|
| MPN | CS19216 |
