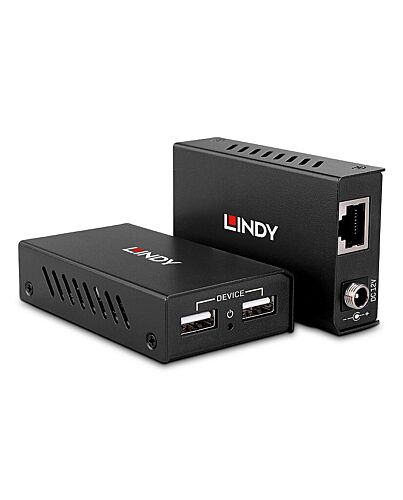

Lindy 100m 2 Port USB 2.0 Cat. 6 Extender
£103.70
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 100m. A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Key Features
- Extend two USB 2.0 ports up to 100m using low cost Cat. 6 network cable (not included)
- Bi-directional PoC (Power over Cable) requires a power supply connection f only one side of the installation
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug & Play installation
Specifications
Features
Type*
AV transmitter & receiver
Maximum transfer distance
100 m
Chipset
VA6000
Bandwidth
0.48 Gbit/s
Material
Metal
Product colour
Black
Certification
CE, FCC, RoHS & REACH, CP65
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
1
RJ-45 output ports
1
USB ports quantity
3
USB version
2.0
USB connector type
USB Type-B
DC-in jack
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Weight & dimensions
Width
82 mm
Depth
49 mm
Height
20 mm
Weight
200 g
Packaging data
Quantity per pack
2 pc(s)
Package width
200 mm
Package depth
115 mm
Package height
75 mm
Package weight
600 g
Package type
Box
Packaging content
Cables included
USB Type-A to USB Type-B
Manual
Yes
Mounting brackets included
Yes
Packaging content
Transmitter unit
Receiver unit
0.9m USB 2.0 A Male to B Male cable
Multi-Country Power Supply (EU, UK, US & AUS)
Mounting Brackets
Lindy Manual
Additional Information
| EAN/UPC | 4002888434089 |
|---|---|
| MPN | 43408 |
