Components
Neomounts WL40-550BL16 TV mount wall 40-65" - full motion - easy install
£84.08
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

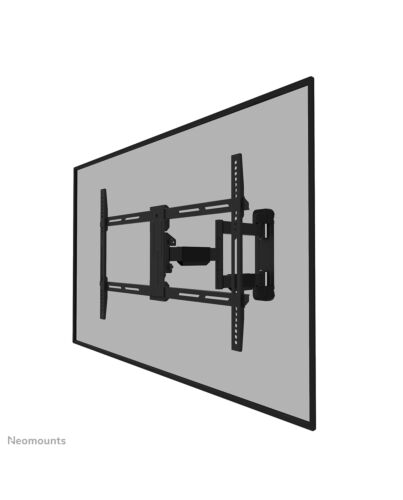

The Neomounts WL40-550BL16 LEVEL is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (+45°/-45°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-550 wall mount has a depth of 5,3-49 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm.
The WL40-550BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
The LEVEL-550 wall mount has a depth of 5,3-49 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm.
The WL40-550BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Specifications
Mounting
Maximum weight capacity*
40 kg
Minimum screen size
101.6 cm (40")
Number of displays supported*
1
Maximum weight capacity (per display)*
40 kg
Maximum screen size*
165.1 cm (65")
Minimum VESA mount*
200 x 100 mm
Maximum VESA mount*
600 x 400 mm
Panel mounting interface
200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 300,600 x 200,600 x 400
Mounting type*
Wall
Ergonomics
Height adjustment
No
Tilt adjustment
Yes
Tilt angle range
-2 - 12°
Swivelling
Yes
Swivel angle
40°
Swivel angle range
-45 - 45°
Rotating
Yes
Angle of rotation
6°
Pivot angle
-3 - 3°
Cable management
Yes
Type
Full motion
Distance to the wall (max)
49 cm
Distance to the wall (min)
5.3 cm
Design
Product colour*
Black
Housing material
Steel
Technical details
Country of origin
China
Package net weight
6.6 kg
Quantity per pack
1 pc(s)
Lockable
Not lockable
Packaging content
Mounting kit
Yes
Weight & dimensions
Width
660 mm
Depth
53 mm
Depth (max)
5.3 cm
Height
436 mm
Weight
5 kg
Packaging data
Package width
684 mm
Package depth
323 mm
Package height
56 mm
Package weight
6.6 kg
Logistics data
Master (outer) case width
704 mm
Master (outer) case length
185 mm
Master (outer) case height
343 mm
Master (outer) case gross weight
20.4 kg
Master (outer) case net weight
18 kg
Products per master (outer) case
3 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
72 pc(s)
Additional Information
| EAN/UPC | 8717371448745 |
|---|---|
| MPN | WL40-550BL16 |
