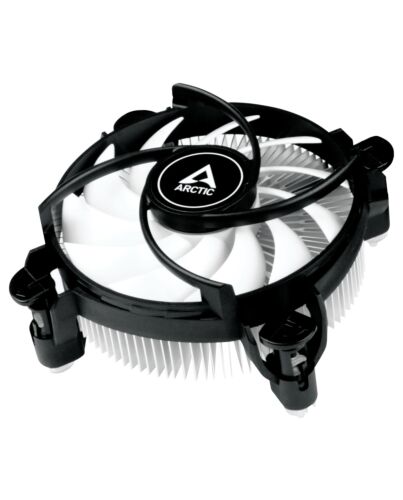

ARCTIC Alpine 17 LP Low-Profile CPU-Cooler for Intel Socket 1700

£6.28

ARCTIC Alpine 17 LP Low-Profile CPU-Cooler for Intel Socket 1700, Air cooler, 8.8 cm, 300 RPM, 3000 RPM, 0.5 sone, Aluminium, Black

Out of stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything f high-performance tower coolers to compact and inexpensive alternatives to boxed coolers to completely silent passive radiators. Broad compatibility and innovative features are part of our standard repertoire.

Reasons To Buy

Designed for Intel Alder Lake & Raptor Lake

The Alpine 17 LP is specifically adapted and optimised for Intel's new LGA1700 CPUs. The radial cooler and the mounting spots are designed so that the centre of the cooler is centred on the CPU. Thus, the processor’s hotspot in all variants is covered by the aluminium core.

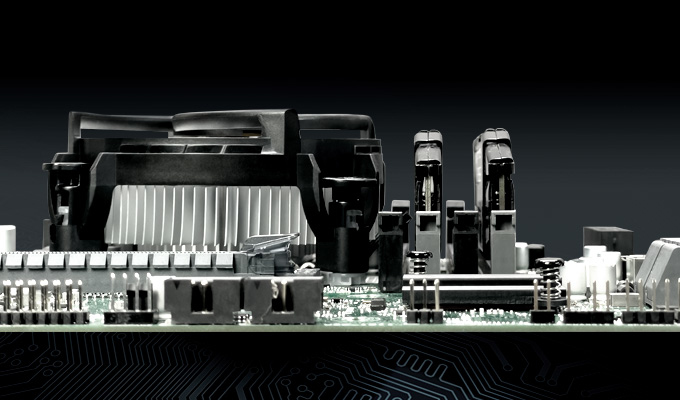

Low Profile Design

With an installation height, measured f the CPU to the top of the cooler, of only 42.9 mm, the Alpine 17 LP is particularly suitable for small and narrow housings. It is space-saving, easy to assemble and allows full access to all components close to the CPU. The compact Top-Blower CPU cooler also cools areas around the CPU socket and is predestined for HTPC and Mini-ITX cases.

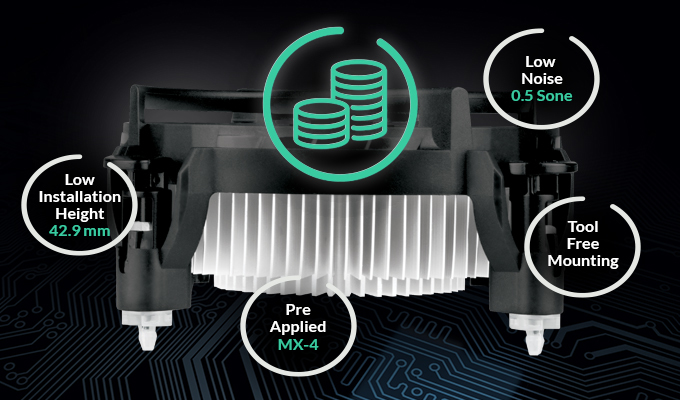

Good Price-Performance Ratio

Thanks to its flat radial heat sink and sophisticated fan design, the Alpine 17 LP offers performance at a very low price.

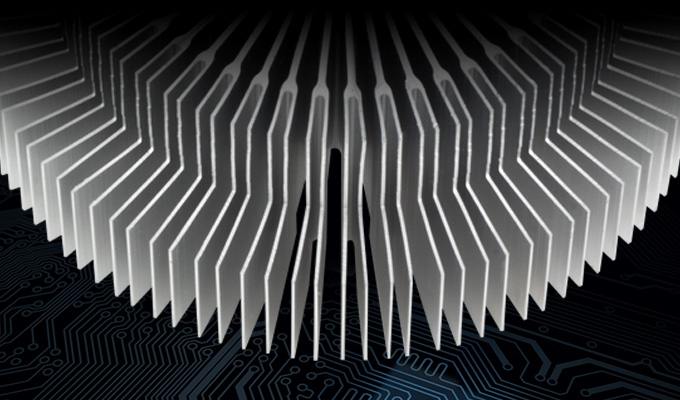

Proven Technology

ARCTIC uses a proven heat sink design in the Alpine 17 LP. The extra fine Y-shaped, fanned-out cooling fins ensure a considerable increase in the cooling surface and optimisation of airflow. A novel production process makes it possible to extrude the fins even more finely without making them unstable. This enables the production of a powerful, but at the same time, very flat and compact radial heat sink.

Wide RPM Range

The Alpine 17 LP features an updated motor with a very wide PWM-controlled rpm range f 300 up to 3000 rpm. At low system load, the fan switches off almost completely. This keeps the noise level at a minimum while guaranteeing maximum cooling performance under stress.

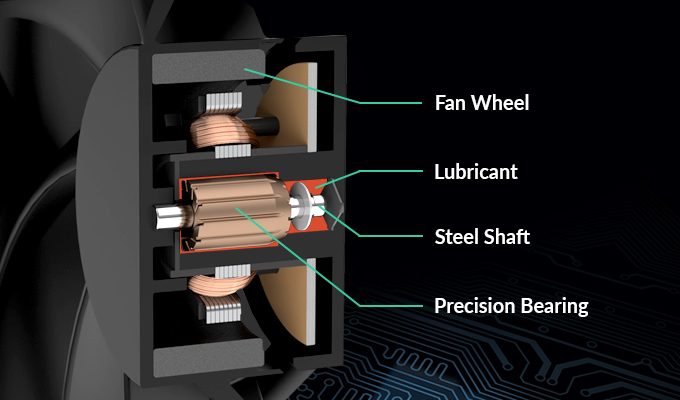

High- Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction inside the bearing is reduced and higher efficiency is achieved. As a result, there is less heat development, less bearing noise and the service life of the fan is extended.

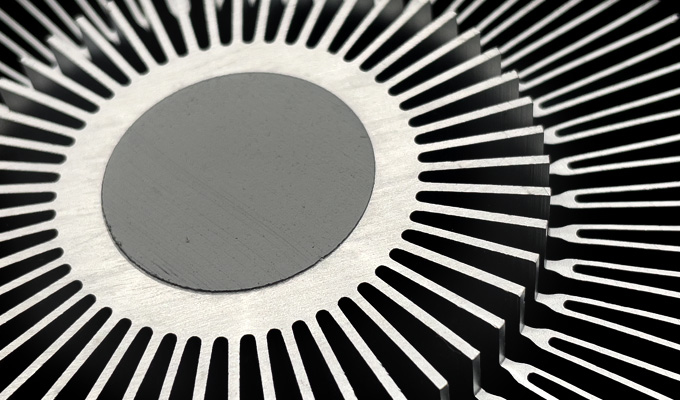

Pre-Applied MX-4 Thermal Paste

The popular, very efficient MX-4 thermal compound is already pre-applied and not only ensures a quick and clean installation - the PREMIUM Performance Thermal Paste also eliminates air pockets and ensures perfect transfer of the exhaust heat f the processor IHS to the Alpine 17 LP's heat sink. The MX-4 f ARCTIC is characterised above all by its very good long-term durability.

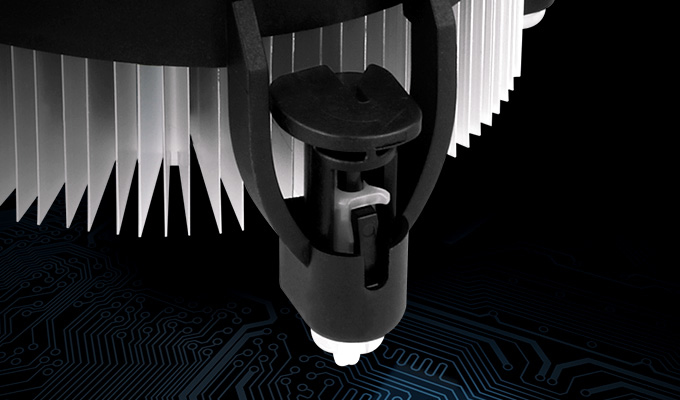

Easy And Tool-Free Installation

Installation is very easy thanks to the push pins and the cooler’s light weight. The cooler can be easily mounted on the built-in motherboard without any tools. Thanks to the proven snap-in mechanism of the push pins, the cooler can be reliably installed at all times, even in the case of vibrations.

Specifications

Performance

Suitable location*

Processor

Type*

Air cooler

Fan diameter

8.8 cm

Supported processor sockets

LGA 1700

Rotational speed (min)

300 RPM

Rotational speed (max)

3000 RPM

Noise level

0.5 sone

Pulse-width ulation (PWM) support

Yes

Fan bearing technology

Fluid Dynamic Bearing (FDB)

Quantity per pack

1 pc(s)

Design

Product colour*

Aluminium, Black

Radiator material

Aluminum

Number of fans

1 fan(s)

Fan connector

4-pin

Power

Fan voltage

12 V

Fan current

0.18 A

Weight & dimensions

Width

95 mm

Radiator height

2.26 cm

Depth

95 mm

Height

55.5 mm

Weight

183.5 g

Diameter

93.6

Cable length

0.2 m

Package width

99 mm

Package depth

99 mm

Package height

61 mm

Package weight

261 g

Additional Information

More Information
EAN/UPC	4895213704052
MPN	ACALP00042A
