Networking

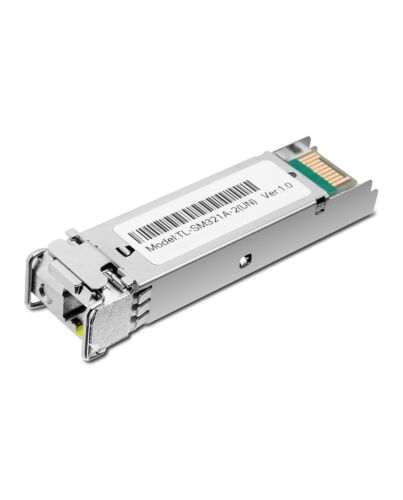

TP-Link TL-SM321A network transceiver module Fiber optic 1250 Mbit/s SFP
£14.17
TP-Link TL-SM321A, Fiber optic, 1250 Mbit/s, SFP, LC (UPC), 9/125 µm, BX
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.
Key Features
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Paired with TL-SM321B or CM112CM
- Compatible with T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L
Specifications
Performance
SFP transceiver type*
Fiber optic
Maximum data transfer rate*
1250 Mbit/s
Interface type*
SFP
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC (UPC)
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver standard
BX
Maximum transfer distance
1000 m
Tx wavelength (max)
1550 nm
Rx wavelength (max)
1310 nm
Networking standards
IEEE 802.3z
Fiber ethernet cabling technology
1000BASE
Wavelength-division multiplexing (WDM)
Yes
Features
Product colour
Metallic
Hot-swap
Yes
Power
Input voltage
3.3 V
Certificates
Compliance certificates
RoHS
Certification
CE, FCC
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Quantity per pack
1 pc(s)
Packaging data
Package width
81.5 mm
Package depth
122.5 mm
Package height
38.5 mm
Package weight
60 g
Logistics data
Harmonized System (HS) code
85369010
Additional Information
| EAN/UPC | 1210002612074 |
|---|---|
| MPN | SM321A-2 |
