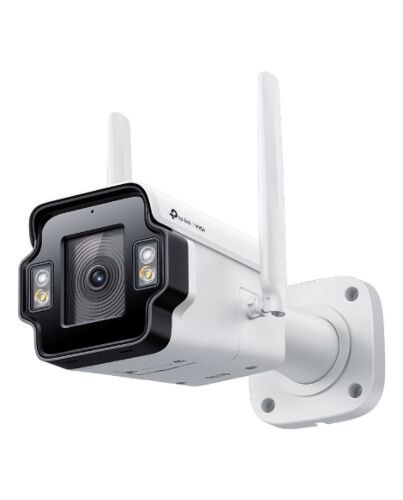

  • TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

£331.46
TP-Link INSIGHT S345-4G, IP security camera, Outdoor, Wired, 80 m, External, 120 dB
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

4G and 3 LAN Ports, Hassle-free Deployment
4MP Outdoor Full-Color 4G Bullet Network Camera

3 LAN Ports Meet Minimal Deployment Effort

InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.

Human & Vehicle Classification
Distinguish humans and vehicles f other objects and receive more accurate event notifications.

LightPro Night Vision Technology

The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△

Smart IR: Smart IR dynamically adjusts infed lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Key Features

  • 4MP Super-High Definition and 24h Full-Color
  • People & Vehicle Analytics§
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology

Specifications

Performance

Type*
IP security camera
Placement supported*
Outdoor
Connectivity technology*
Wired
Maximum operating distance
80 m
Wide Dynamic Range (WDR)
Yes
Day/night e
Yes
Infed (IR) cut-off filter
Yes
Remote viewing
Yes
Antenna type
External
Antennas quantity
2
Dynamic range
120 dB

Design

Form factor*
Bullet
Mounting type*
Wall
Product colour*
White
Housing material
Metal
Protection features
Waterproof
International Protection (IP) code
IP66
Weatherproof
Yes

Camera

Minimum illumination
0 lx
Lens viewing angle, horizontal
80.4°
Lens viewing angle, vertical
41.8°
Lens viewing angle, diagonal
98.7°
Tilt angle range
0 - 90°
Camera shutter speed
1/3 to 1/10000

Image sensor

Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Progressive scan
Yes
Sensor type*
CMOS

Lens system

Detect distance
80 m
Observe distance
33 m
Recognize distance
16 m
Fixed focus
Yes
Maximum aperture number
1.6
Identify distance
8 m
Fixed focal length
4 mm

Night vision

Night vision*
Yes
LED type
IR/White

Video

Maximum resolution*
2688 x 1520 pixels
Total megapixels*
4 MP
Video compression formats
H.264, H.264+, H.265, H.265+
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video recording
Yes
Image quality adjustment
Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Back Light Compensation (BLC)
Yes
Highlight Compensation (HLC)
Yes
Digital Wide Dynamic Range (DWDR)
Yes

Audio

Built-in speaker(s)
Yes
Audio system
2-way
Audio input channels
1.0 channels
Audio output channels
1.0 channels
Audio formats supported
G.711 A-law

Audio

Sample rate
8 kHz
Built-in microphone
Yes
Number of microphones
1
Bit rate range
0 - 64 Kbit/s

Network

Ethernet LAN*
Yes
Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Wi-Fi*
No
Bluetooth*
No
SIM card slot
Yes
SIM card type
NanoSIM
Mobile network generation
4G
4G standard
LTE-TDD & LTE-FDD
Live view
Yes

Storage

Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports
3
DC-in jack
Yes

Security

Built-in siren
Yes
Password protection
Yes
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Detection distance
120 m
Alert notification type
Push notification
Motion sensor
Yes
Mirror
Yes
Human and vehicle targets classification
Yes
Digest ation
Yes

Management features

Web-based management
Yes
Web browser
Yes
Cloud-managed*
Yes
Reset button
Yes

Power

Power source type*
DC
Power consumption (max)
9.7 W
Power consumption (Power over Ethernet (PoE))
10.7 W
DC output voltage
12

Operational conditions

Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
122 mm
Height
101 mm
Length
256 mm
Weight
1.09 kg

Packaging content

Number of cameras*
1
Mounting kit
Yes
Screws included
Yes
Drilling template included
Yes
Manual
Yes

Additional Information

More Information
EAN/UPC 1210002619516
MPN INSIGHT S345-4G(4MM)
