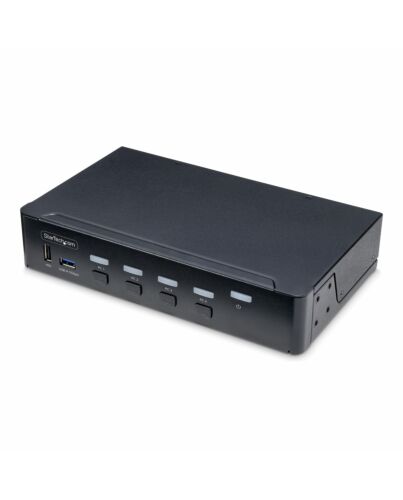

StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant
£19.26
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computers
This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
The StarTech.com Advantage
This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
The StarTech.com Advantage
Key Features
- FAST SWITCHING 4K 60HZ KVM: Share one set of peripherals, including a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort monitor, between four DisplayPort-enabled desktops; Ideal for CAD/CAM, video editing, and content creation applications
- MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling another
- UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch works with any operating system including Windows, macOS, ChromeOS, and Linux; Compatible with all hardware platforms such as Intel and AMD
- DURABLE DESIGN: Metal housing helps prevent Electro-magnetic Interference (EMI); 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM; Included rubber feet protect the work surface and keep KVM in place during operation
- TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.2 compliant, supporting resolutions up to 4K 60Hz, HDR10, and HDCP 1.4; Supports DisplayPort Audio and 3.5mm analog audio; 4x USB HID Ports; 2x USB 5Gbps Hub Ports; OS Independent
Specifications
Ports & interfaces
Number of computers controlled*
4
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPorts quantity
4
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
Console ports*
3.5mm headphone, DisplayPort, USB A
Console USB ports quantity
4
Console DisplayPorts ports quantity
1
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
4
DC-in jack
Yes
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Data transfer rate (max)
5 Gbit/s
Scan interval
3,8,15,30 s
HDCP
Yes
Plug and Play
Yes
Chipset
GL3523
Audio channels
2.0
HDCP version
1.4
Design
Rack mounting*
Yes
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
130000 h
Display
Built-in display*
No
On Screen Display (OSD)
No
Power
Power source
DC
Input voltage
100 - 240, 12 V
Input current
1 A
Output current
3 A
Power consumption (typical)
36 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Sustainability compliance
Yes
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
130 mm
Depth
220 mm
Height
44 mm
Weight
1 kg
Packaging data
Package width
212 mm
Package depth
410 mm
Package height
87 mm
Package weight
1.2 kg
Packaging content
Quick installation guide
Yes
Rubber feet
Yes
Other features
Display resolution at frequency
3840x2160 @ 60hz
3840x2160 @ 30hz
2560x1600 @ 60hz
2560x1600 @ 30hz
2560x1440 @ 60hz
2048x1536 @ 60hz
2048x1536 @ 30hz
1920x1440 @ 60hz
1920x1200 @ 60hz
1920x1080 @ 60hz
1680x1050 @ 60hz
1600x1200 @ 60hz
1600x1024 @ 60hz
1600x900 @ 60hz
1440x1080 @ 60hz
1366x768 @ 60hz
1360x768 @ 60hz
1280x1024 @ 60hz
1280x960 @ 60hz
1280x800 @ 60hz
1280x768 @ 60hz
1280x720 @ 60hz
1176x664 @ 60hz
1152x864 @ 60hz
1024x768 @ 60hz
800x600 @ 60hz
Colour depth
10 bit
IP control
No
Logistics data
Master (outer) case width
545 mm
Master (outer) case length
433 mm
Master (outer) case height
258 mm
Products per master (outer) case
6 pc(s)
Additional Information
| EAN/UPC | 0065030903264 |
|---|---|
| MPN | DP21-1M-DP80-CABLE |
