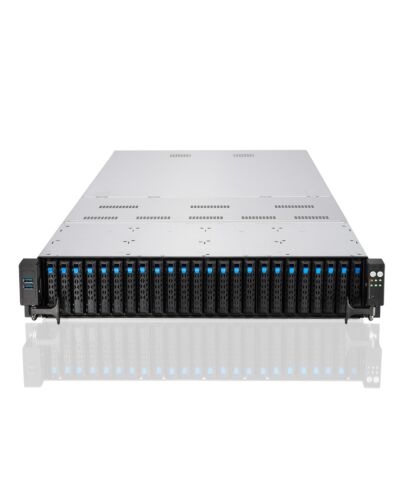

ASUS RS720-E11-RS24U Intel C741 Rack (2U) Black, Silver
£4,313.44
ASUS RS720-E11-RS24U, Intel C741, Intel, Intel® Xeon® Scalable, Intel® Xeon®, DDR5-SDRAM, 2.5,3.5,M.2
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for ern data center.
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for ern data center.
Key Features
- Powerful performance: Powered by 4th Gen Intel Xeon Scalable processors designed for potent data infrastructure f the cloud, to the network, to the intelligent edge
- Scale-up storage and expansion design: Up to 24 all-flash NVMe drives on the front panel and four PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking ule design: Optional two 10 Gbps or four 1 Gbps on-board LAN ule, and OCP 3.0 ule with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100
Specifications
Processor
Built-in processor*
No
Motherboard chipset*
Intel C741
Processor manufacturer
Intel
Processor family
Intel® Xeon® Scalable
Number of processors supported*
1
Compatible processor series
Intel® Xeon®
Memory
Number of DIMM slots*
32
Supported memory types*
DDR5-SDRAM
Storage
Number of storage drives supported*
48
Hot-swap HDD bays*
Yes
Storage drive sizes supported
2.5,3.5,M.2
Supported storage drive interfaces
Serial ATA, Serial Attached SCSI (SAS)
Graphics
On-board graphics card el
Aspeed AST2600
On-board graphics card memory
64 MB
Maximum graphics card memory
64 MB
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates
1000,10000 Mbit/s
LAN controller
Intel X710-AT2, Intel® I350-AM2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ports & interfaces
Ethernet LAN (RJ-45) ports*
2
IPMI LAN (RJ-45) port
Yes
Expansion slots
PCI Express slots version
5.0
PCI Express x8 slots
2
PCI Express x16 slots
3
Features
Trusted Platform ule (TPM)
Yes
Trusted Platform ule (TPM) version
2.0
Design
Chassis type*
Rack (2U)
Product colour
Black, Silver
LED indicators
Yes
Cooling type
Active
Number of fans
4 fan(s)
Power
Power supply*
1600 W
Number of redundant power supplies supported
2
80 PLUS certification
80 PLUS Platinum
Weight & dimensions
Width
840 mm
Depth
447 mm
Height
88 mm
Weight
36 kg
Additional Information
| EAN/UPC | 4711387382653 |
|---|---|
| MPN | 90SF01Z1-M008V0 |
