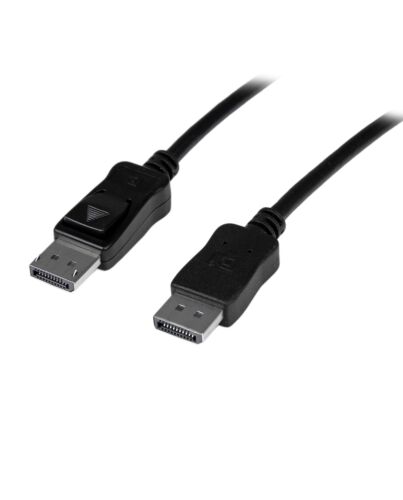

StarTech.com 32ft (10m) Active DisplayPort Cable - 4K Ultra HD DisplayPort Cable - Long DP to DP Cab
£26.84
StarTech.com 32ft (10m) Active DisplayPort Cable - 4K Ultra HD DisplayPort Cable - Long DP to DP Cable for Projector/Monitor - DP Video/Display Cord - Latching DP Connectors, 10 m, DisplayPort, DisplayPort, Male, Male, 2560 x 1600 pixels
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Connect DisplayPort®-equipped devices up to 10m away with no signal loss
The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
The StarTech.com Advantage
The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
The StarTech.com Advantage
Key Features
- ACTIVE DISPLAYPORT CABLE: Active 10m (32.8ft) DisplayPort cable supports 4K (3840x2160p at 30Hz), 10.8 Gbps bandwidth, HBR, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (1080p at 60Hz)
- ACTIVE CIRCUITRY: Active bus powered amplifier boosts video signals over longer distances up to 10 m (32.8 ft) (no external power supply needed), supports additional color spaces
- LIGHT AND DURABLE CABLE: Long-lasting light-weight cable; 32AWG wire; Flexible PVC jacket; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms, works with your laptop/professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with UHD/4K monitors, projector or large display
- SPECS: 10 m (32.8 ft) / Black / DisplayPort v1.2 Latching Male to Male / 32 AWG / PVC cable jacket / Shield: Al-Mylar foil with Braid / Protocols: HBR, MST, GTC / 2-Year Warranty / Note: DP connector labelled ""Display"" connects to the display side
Specifications
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Nickel
DisplayPort version
1.2
Maximum resolution*
2560 x 1600 pixels
HDCP
Yes
DisplayPort Content Protection (DPCP)
Yes
Cable length*
10 m
Connector 1*
DisplayPort
Connector 2*
DisplayPort
Connector 1 gender*
Male
Connector 2 gender*
Male
Latching connectors
Yes
Product colour*
Black
Cable rating
CMG (CM)
Magnetically shielded
Yes
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
32
Bandwidth
10800 MB/s
Multi-Stream Transport (MST)
Yes
Number of conductors
19
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Certificates
Compliance certificates
CE, RoHS
Weight & dimensions
Weight
452 g
Packaging data
Package width
255 mm
Package depth
330 mm
Package height
40 mm
Package weight
466 g
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
334 mm
Master (outer) case length
502 mm
Master (outer) case height
239 mm
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 0065030854221 |
|---|---|
| MPN | DISPL10MA |
