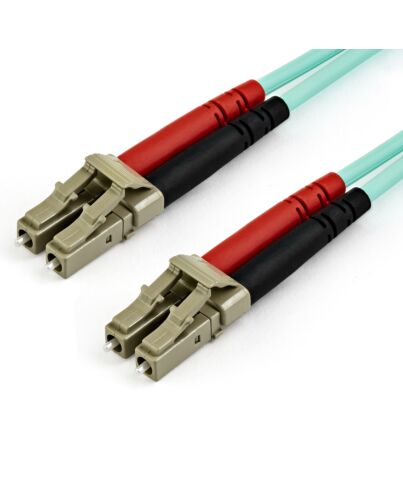

StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multie Fiber Optic Cable, Full Duplex 50/125µm cord Fibe
£21.26
StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multie Fiber Optic Cable, Full Duplex 50/125µm cord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord, 7 m, OM3, LC, LC
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+
This OM3 LC to LC Multie Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.
Built for Performance
With laser-optimized multie fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.
Reliable Connection
Each OM3 fiber cable is individually tested and to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
High-Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
This OM3 LC to LC Multie Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.
Built for Performance
With laser-optimized multie fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.
Reliable Connection
Each OM3 fiber cable is individually tested and to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
High-Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- OM3 FIBER CABLE: OM3 Laser-Optimized Multie Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex -cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/LC multie cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 7m (23ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; al Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Specifications
Features
Cable length*
7 m
Fibre optic type
OM3
Connector 1*
LC
Connector 2*
LC
Connector 1 gender*
Male
Connector 2 gender*
Male
Product colour*
Aqua colour
Full duplex
Yes
Core diameter
50 µm
Cladding diameter
125 µm
Fiber e structure
Multi-e
Wavelengths supported
850 nm
Data transfer rate
100 Gbit/s
Jacket material*
Low smoke zero halogen (LSZH)
Sustainability
Doesn't contain
Halogen
Certificates
Compliance certificates
RoHS, CE
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Weight
96 g
Packaging data
Package width
215 mm
Package depth
200 mm
Package height
20 mm
Package weight
106 g
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case width
410 mm
Harmonized System (HS) code
85447000
Master (outer) case length
410 mm
Master (outer) case height
435 mm
Products per master (outer) case
120 pc(s)
Additional Information
| EAN/UPC | 0065030881845 |
|---|---|
| MPN | A50FBLCLC7 |
