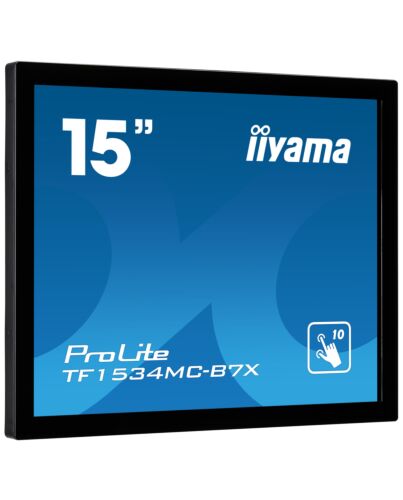

iiyama TF1534MC-B7X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Multi-user
£348.97
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant f the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
Reasons To Buy
Touch technology - Capacitive
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, estate office, in-store for POS or restaurants.Scratch resistance
IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure f any direction.Open frame brackets
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.Specifications
Display
Display diagonal*
38.1 cm (15")
Display resolution*
1024 x 768 pixels
HD type*
XGA
Native aspect ratio*
4:3
Display technology*
LED
Panel type*
TN
Touchscreen*
Yes
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (typical)
370 cd/m²
Display brightness
330 cd/m²
Response time*
8 ms
Screen shape*
Flat
Contrast ratio (typical)*
700:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Display number of colours*
16.2 million colours
Pixel pitch
0.297 x 0.297 mm
Horizontal scan range
31.4 - 60 kHz
Viewable size, horizontal
30.4 cm
Viewable size, vertical
22.8 cm
Display diagonal (metric)
38 cm
Surface hardness
7H
Performance
NVIDIA G-SYNC*
No
AMD FreeSync*
No
Palm rejection
Yes
Design
Product colour*
Black
Front bezel colour
Black
Ports & interfaces
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI*
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
HDCP
Yes
Ergonomics
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Power
Energy efficiency class (SDR)*
E
Energy efficiency class (HDR)*
Not available
Power
Energy consumption (SDR) per 1000 hours*
10 kWh
Power consumption (typical)*
9 W
Power consumption (standby)*
0.7 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Weight & dimensions
Width (with stand)
337.5 mm
Depth (with stand)
44.5 mm
Height (with stand)
265.5 mm
Weight (with stand)
2.7 kg
Width (without stand)
337.5 mm
Depth (without stand)
44.5 mm
Height (without stand)
265.5 mm
Weight (without stand)
2.7 kg
Packaging data
Package width
435 mm
Package depth
165 mm
Package height
335 mm
Package weight
4 kg
Packaging content
Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Sustainability
Sustainability certificates
ErP
Other features
International Protection (IP) code
IP65
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
AC adapter included
Yes
Display viewable area (HxV)
304 x 228 mm
User controls
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display e, factory)
Brightness
330 cd/m²
Packaging content
AC adapter
Active display area (W x H)
304 x 228 mm
Touch method
stylus, finger, glove (latex)
Weight
2.7 kg
Height
265.5 mm
Width
337.5 mm
Depth
44.5 mm
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Logistics data
Products per pallet
78 pc(s)
Pallet net width
91 cm
Pallet net length
198.7 cm
Pallet net height
114 cm
Harmonized System (HS) code
85285210
Additional Information
| EAN/UPC | 4948570118380 |
|---|---|
| MPN | TF1534MC-B7X |
| BRAND | Iiyama |
