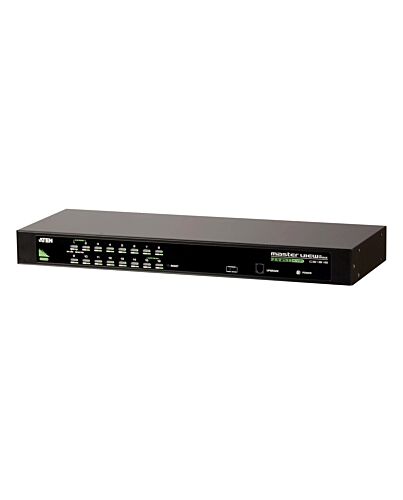

ATEN 16-Port USB - PS/2 VGA KVM Switch
£305.70
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS1316 KVM switch allows access and control up to 256 computers f a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled f a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key Features
- One USB-PS/2 console controls 16 computers; Cascade up to 2 levels - control up to 256 computers
- Broadcast e - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Specifications
Ports & interfaces
Number of computers controlled*
256
Keyboard port type*
USB, PS/2
Mouse port type*
USB, PS/2
Video port type*
VGA
Console ports*
VGA (D-Sub)
Performance
HD type*
QXGA
Maximum resolution*
2048 x 1536 pixels
Scan interval
1,255 s
DDC2B support
Yes
Hot-Plug support
Yes
upgradeable
Yes
Design
Rack mounting*
Yes
Rack capacity
1U
Product colour*
Black
Housing material
Metal
Cascadable
Yes
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
On Screen Display (OSD)
Yes
Power
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
6.5 W
System requirements
Windows operating systems supported
Yes
System requirements
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
437.2 mm
Depth
161.3 mm
Height
44 mm
Weight
2.5 kg
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
2.87 kg
Packaging content
Cables included
KVM
Quick installation guide
Yes
Manual
Yes
AC adapter included
Yes
Logistics data
Master (outer) case net weight
7.5 kg
Harmonized System (HS) code
85176200
Master (outer) case width
375 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
9.27 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4710423774209 |
|---|---|
| MPN | CS1316 |
| BRAND | ATEN |
