Components

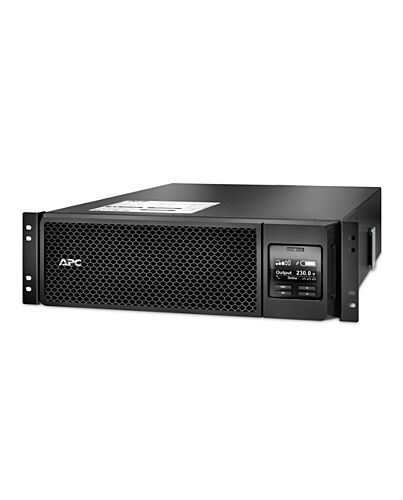

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine
£5,369.83
APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine, Double-conversion (Online), 5 kVA, 4500 W, Pure sine, 160 V, 275 V
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Specifications
Features
UPS topology*
Double-conversion (Online)
Output power capacity*
5 kVA
Output power*
4500 W
Waveform*
Pure sine
Input operation voltage (min)*
160 V
Input operation voltage (max)*
275 V
Input frequency*
45/65 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
230 V
Output frequency
50/60 Hz
Surge energy rating
480 J
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Surge protection
Yes
Audible alarm(s)
Yes
Temperature voltage compensation
Yes
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler, IEC Jumpers
Power plug
Terminal
AC outlets quantity
12 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
Serial interface
Yes
Serial interface type
RJ-45
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100Base-T
SmartSlot
Yes
Battery
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery life (max)
5 year(s)
Battery recharge time
1 h
Hot-swap battery
Yes
Battery
Automatic battery test
Yes
Design
Form factor*
Mini Tower
Product colour*
Black
Display type
LCD
LED indicators
Yes
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Certificates
Compliance certificates
RoHS
Certification
CE, DNV, EAC, RCM, VDE, REACH
Packaging content
Quick installation guide
Yes
Weight & dimensions
Width
432 mm
Depth
719 mm
Height
130 mm
Weight
54.4 kg
Packaging data
Resource CD
Yes
Warranty card
Yes
Package width
610 mm
Package depth
960 mm
Package height
330 mm
Package weight
66.9 kg
Logistics data
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
46266.7
Additional Information
| EAN/UPC | 731304320821 |
|---|---|
| MPN | SRT5KRMXLIM |
| BRAND | APC |
