Components

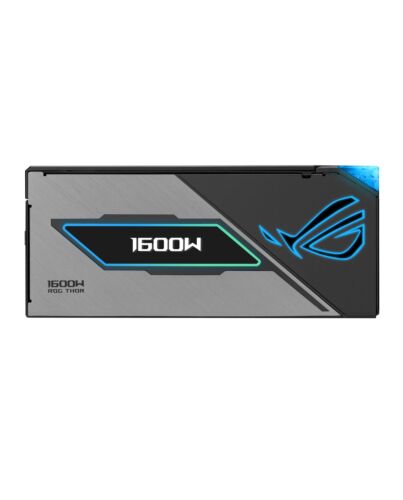

ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey
£762.29
ASUS ROG -THOR-1600T3-GAMING, 1600 W, 100 - 240 V, Active, 125 W, 1600 W, 125 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ULTIMATE POWER. UNMATCHED STABILITY.
The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.
The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.
The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
Key Features
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance
- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation
- Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions
- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs
- ATX 3.1 compatible: ROG Thor Titanium III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware
- Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety
- Cybenetics Lambda A+ noise & Titanium certification
- 80 PLUS Titanium certified: ROG Thor Titanium III utilizes low-ESR capacitors and premium components for industry-leading power efficiency
Specifications
Power
Total power*
1600 W
AC input voltage*
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1600 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
30 A
Max output current (+12V)
133.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
61 cm
Number of SATA power connectors
10
SATA power cable length
120,400 mm
Peripheral (Molex) power connectors (4-pin)*
9
Peripheral (Molex) power cable length
150,400 mm
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
2
PCI Express power cable length
75 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
100 cm
Cabling type
Fully-Modular
Performance
80 PLUS certification*
80 PLUS Titanium
Performance
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Silent mode
Yes
Bearing technology
DBB
Mean time between failures (MTBF)
120000 h
Design
Product colour
Grey
Cooling type
Active
Number of fans
1 fan(s)
Illumination
Yes
Built-in display
Yes
Display type
OLED
On/off switch
Yes
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included
Yes
Weight & dimensions
Width
200 mm
Depth
150 mm
Height
86 mm
Weight
2.8 kg
Packaging data
Package width
390 mm
Package depth
251 mm
Package height
159 mm
Package weight
6.3 kg
Package type
Box
Additional Information
| EAN/UPC | 4711387610299 |
|---|---|
| MPN | 90YE00V1-B0NA00 |
| BRAND | ASUS |
