ATEN HDMI Receiver only over 1 CAT5e/6 Cable (100m) ,4K / HDBaseT
£197.46
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

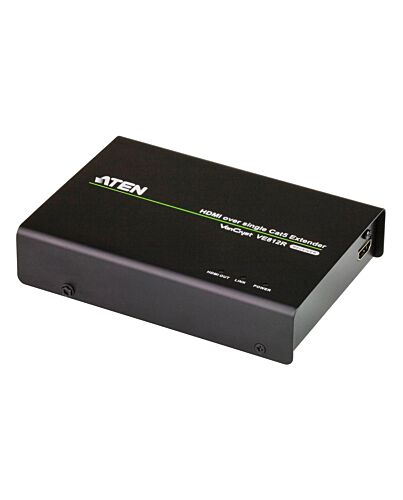

The VE812R HDMI HDBaseT Receiver enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.
The VE812R supports HDMI (3D, Deep Color), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.
The VE812R is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
The VE812R supports HDMI (3D, Deep Color), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.
The VE812R is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Key Features
- Extends the distance between HDMI source and HDMI display
- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4k); HDCP Compatible
- Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 100m
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports up to 340MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Specifications
Features
Type*
AV repeater
Maximum resolution*
1920 x 1080 pixels
Maximum transfer distance
100 m
LED indicators
Yes
Supported video modes
1080p
Product colour
Black
Ports & interfaces
Ethernet LAN
Yes
RJ-45 input ports
1
Video out
HDMI
DC-in jack
Yes
Power
Power consumption (typical)
4.5 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Receiver dimensions (WxDxH)
103 x 141.7 x 30 mm
Receiver weight
430 g
Additional Information
| EAN/UPC | 4719264640285 |
|---|---|
| MPN | VE812R |
| BRAND | ATEN |
