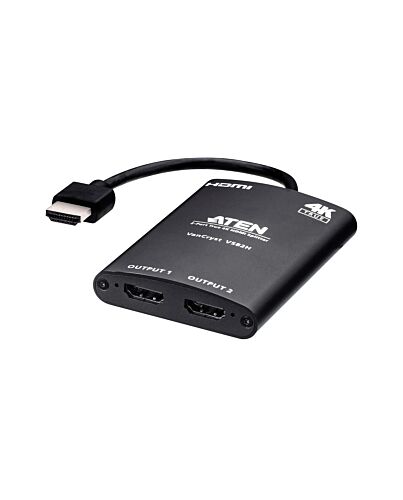

ATEN 2 Port True 4K HDMI Splitter
£81.34
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN VS82H splitter offers you superior video resolution of True 4K and lossless quality when sending one source of digital high-definition video to two displays. It supports HDMI-enabled equipments f DVD players, satellite set-top boxes to all HDMI displays.
Aside f being HDCP 2.2 compliant, the VS82H comes with automatic EDID detection that always presents users with the best resolution across different screens. Along with support for Dolby TrueHD and DTS-HD Master 7.1 Audio channel, the VS82H ensures you distortionless and outstanding audio quality.
What’s more, the VS82H is a bus-powered splitter that can be charged directly f a device connected through Micro-USB port. Integrating the above functionalities provides you an effective solution for personal, corporate, educational and commercial applications.
Aside f being HDCP 2.2 compliant, the VS82H comes with automatic EDID detection that always presents users with the best resolution across different screens. Along with support for Dolby TrueHD and DTS-HD Master 7.1 Audio channel, the VS82H ensures you distortionless and outstanding audio quality.
What’s more, the VS82H is a bus-powered splitter that can be charged directly f a device connected through Micro-USB port. Integrating the above functionalities provides you an effective solution for personal, corporate, educational and commercial applications.
Key Features
- Distributes one True 4K source to two HDMI displays at the same time
- Automatic downscaling function – automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
- True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR supported
- Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
- Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
- Automatic EDID detection – enjoy high-quality display and use of the best resolution across different screens
- Quality and durable aluminum metal enclosure
Specifications
Ports & interfaces
Video port type*
HDMI
Video out*
2x HDMI
HDMI version
2.0
Video ports quantity*
2
Features
Product colour
Black
Housing material
Aluminium
Maximum resolution*
4096 x 2160 pixels
HD type
4K Ultra HD
3D
Yes
Maximum operating distance
5 m
Maximum refresh rate
60 Hz
Bandwidth
600 MHz
HDCP version
2.2
LED indicators
Status
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD
Power
AC input voltage
5 V
Power consumption (typical)
1.35 W
USB powered
Yes
Weight & dimensions
Width
60 mm
Depth
150 mm
Height
88 mm
Weight & dimensions
Weight
120 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
119 mm
Package height
160 mm
Package weight
196 g
Packaging content
Manual
Yes
Cables included
Micro-USB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Logistics data
Master (outer) case net weight
4.8 kg
Harmonized System (HS) code
85176990
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
338 mm
Master (outer) case gross weight
8.36 kg
Products per master (outer) case
40 pc(s)
Additional Information
| EAN/UPC | 4719264648076 |
|---|---|
| MPN | VS82H |
| BRAND | ATEN |
