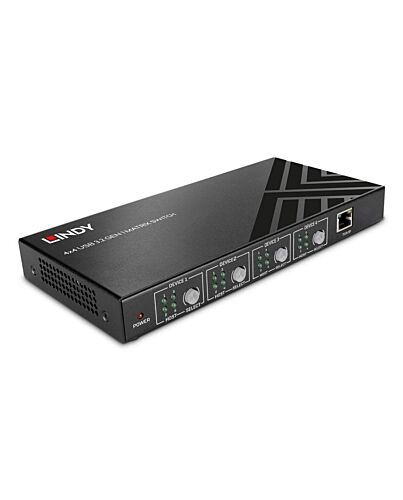

Lindy 4x4 USB 3.2 Gen 1 Matrix Switch
£340.92
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lindy USB 3.2 Gen 1 Matrix Switch allows the user to share up to 4 USB devices to up to 4 hosts in many different ways: by pushing the buttons on the front panel, via web GUI and using RS-232 commands.
It's possible to save up to 8 preset configurations, change the name of hosts and devices from the GUI and with the commands, for smooth and easy operations.
This matrix switch is ideal for sharing printers, storage devices or webcam in office environments, for conference room presentation systems, KVM or industrial applications. It can support USB 3.2 Gen 1 with data transfer rates up to 5Gbps, USB 2.0 and USB 1.1 devices, perfect for use with multiple PCs or Macs.
Each USB Type-A port provide up to 900mA power to the connected device.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
It's possible to save up to 8 preset configurations, change the name of hosts and devices from the GUI and with the commands, for smooth and easy operations.
This matrix switch is ideal for sharing printers, storage devices or webcam in office environments, for conference room presentation systems, KVM or industrial applications. It can support USB 3.2 Gen 1 with data transfer rates up to 5Gbps, USB 2.0 and USB 1.1 devices, perfect for use with multiple PCs or Macs.
Each USB Type-A port provide up to 900mA power to the connected device.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Key Features
- Supports USB 3.2 Gen 1 (USB 3.0), USB 2.0/1.1 backwards compatibility
- Switching between computers with buttons, TCP/IP with web GUI or RS-232 commands
- Matrix switch with presets function
- Plug & Play, no software required
Specifications
Features
Bandwidth
5 Gbit/s
Design
Housing colour
Black
Housing material
Metal
Control type
Rotary
LED indicators
Yes
Certification
CE, FCC, RoHS & REACH
Display
Built-in display*
No
Ports & interfaces
USB connector type
USB Type-A, USB Type-B
USB ports quantity
8
Ethernet LAN (RJ-45) ports
1
RS-232 ports
1
DC-in jack
Yes
Power
AC input voltage
12 V
Input current
3 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
221 mm
Depth
105 mm
Height
26 mm
Weight
1.15 kg
Package width
260 mm
Package type
Box
Package depth
173 mm
Package height
70 mm
Package weight
1.45 kg
Packaging content
Cables included
USB
Manual
Yes
Additional Information
| EAN/UPC | 4002888434065 |
|---|---|
| MPN | 43406 |
