  • D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP

Networking

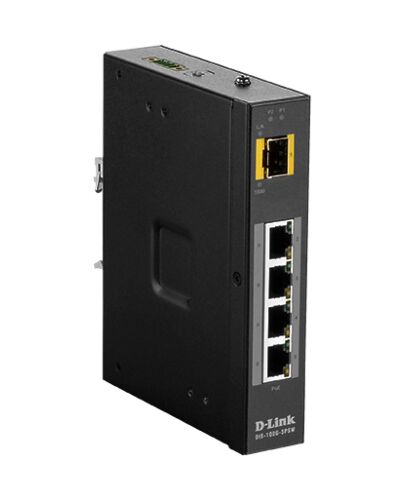

D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP

£191.90
D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Unmanaged Plug and Play with SFP and PoE
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.

Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.

Key Features

  • 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots
  • 120 W PoE Budget
  • Unmanaged plug-and-play simplicity
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, EMC

Specifications

Management features

Switch type*
Unmanaged
Switch layer
L2
Traffic shaping
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity*
4
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
1
Fiber optic connector
LC

Network

Networking standards*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
No
Full duplex
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity*
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table*
2000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Multicast features

Multicast support
Yes

Design

Rack mounting*
No
Product colour
Black
LED indicators
LAN, PoE, Power
Wall mountable
Yes
DIN rail mounting
Yes
Electromagnetic compatibility
FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)

Power

DC input voltage
12 - 58 V
Power consumption (max)
120.2 W
Power protection features
Over current, Reverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) voltage range
54 - 58 V

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget
120 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
410.12 BTU/h

Weight & dimensions

Width
139 mm
Depth
29 mm
Height
107 mm
Weight
375 g

Packaging data

Package width
181 mm
Package depth
210 mm
Package height
75 mm
Package weight
700 g

Technical details

Shipping (inner) case height
24 cm
Shipping (inner) case width
38 cm
Shipping (inner) case length
39 cm
Shipping (inner) case net weight
7 kg
Products per shipping (inner) case
10 pc(s)
Pallet gross weight (air)
251.3 kg
Master (outer) cases per pallet (air)
30 pc(s)
Products per pallet (air)
300 pc(s)
Pallet gross length
120 cm
Pallet gross width
110 cm
Pallet height (air)
133.5 cm
Pallet gross weight (sea)
391.9 kg
Master (outer) cases per pallet (sea)
48 pc(s)
Products per pallet (sea)
480 pc(s)
Pallet height (sea)
2.06 m
Shipping (inner) case gross weight
7.81 kg

Certificates

Certification
IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE

Logistics data

Harmonized System (HS) code
85176990

Additional Information

More Information
EAN/UPC 790069437885
MPN DIS-100G-5PSW
