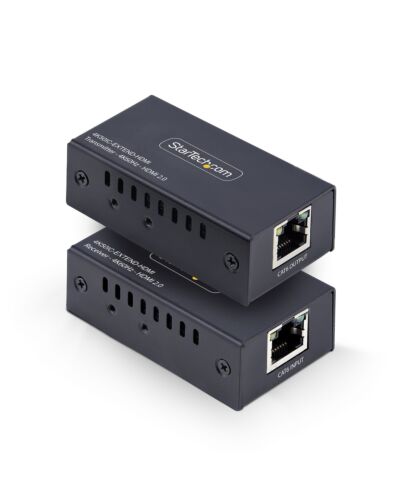

StarTech.com HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor
£11.88
StarTech.com HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor, 3840 x 2160 pixels, AV transmitter & receiver, 60 m, Wired, Black, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Extend a 4K 60Hz HDMI signal over CAT6/6A cabling for distances of up to 200ft (60m) with Power over Cable
The HDMI Extender is designed to transmit visually lossless and low latency 4K 60Hz video and 7.1 channel audio up to 200 feet (60 meters) over a single network cable.
4K 60Hz Resolution
This HDMI over CAT5e extender is HDMI 2.0 compliant and supports up to 4K 60Hz resolutions, HDR, HDCP 2.2, DTS, and Dolby Digital audio. This makes it suitable for high-quality video and audio transmission over long distances.
Power-Over-Cable
The extender features Power-over-Cable (PoC) technology, allowing the included power adapter to connect only to the transmitter while providing power to both the transmitter and receiver through the CAT5e/6 cable. This feature reduces the need for additional power sources at the receiver end.
Versatile Installation Options
A point-to-point connection uses a single CAT6/5e cable and requires no drivers, software, or IP configuration, significantly reducing setup time. The HDMI extender can be mounted on a wall, ceiling, or the underside of a table using the included brackets, offering versatile professional installation options. The HDMI extender offers a longer range than HDMI cables, and Ethernet cables are easier to run in walls, behind furniture, or through cable trays. Its compact form factor makes it ideal for boardrooms, digital signage, trade shows, and classrooms.
The StarTech.com Advantage
The HDMI Extender is designed to transmit visually lossless and low latency 4K 60Hz video and 7.1 channel audio up to 200 feet (60 meters) over a single network cable.
4K 60Hz Resolution
This HDMI over CAT5e extender is HDMI 2.0 compliant and supports up to 4K 60Hz resolutions, HDR, HDCP 2.2, DTS, and Dolby Digital audio. This makes it suitable for high-quality video and audio transmission over long distances.
Power-Over-Cable
The extender features Power-over-Cable (PoC) technology, allowing the included power adapter to connect only to the transmitter while providing power to both the transmitter and receiver through the CAT5e/6 cable. This feature reduces the need for additional power sources at the receiver end.
Versatile Installation Options
A point-to-point connection uses a single CAT6/5e cable and requires no drivers, software, or IP configuration, significantly reducing setup time. The HDMI extender can be mounted on a wall, ceiling, or the underside of a table using the included brackets, offering versatile professional installation options. The HDMI extender offers a longer range than HDMI cables, and Ethernet cables are easier to run in walls, behind furniture, or through cable trays. Its compact form factor makes it ideal for boardrooms, digital signage, trade shows, and classrooms.
The StarTech.com Advantage
Key Features
- HDMI OVER ETHERNET CABLING: HDMI Extender transmits visually lossless and low latency 4K 60Hz video and 7.1ch audio up to 200ft (60m) over a single network cable; HDMI 2.0 compliant extender supports HDR, HDCP 2.2, DTS, & Dolby Digital audio
- POWER-OVER-CABLE: Extend HDMI signals to areas that have limited power outlets using Power-over-Cable (PoC); Included power adapter connects to the HDMI Extender Kit's transmitter while the HDMI receiver is powered over the CAT5e/6 cable
- NO DRIVERS OR SOFTWARE: Point-to-Point connection uses a single CAT6/5e cable and requires no drivers/software or IP configuration, reducing setup time; Works w/any operating system (Windows/macOS/ChromeOS) and hardware platform (Intel/AMD/Apple Silicon)
- VERSATILE MOUNTING OPTIONS: Mount the HDMI extender on a wall, ceiling, or beneath a table using the included mounting brackets; Compact form factor allows for installation in tight spaces
- APPLICATIONS: HDMI extender offers a longer range than HDMI cables, and Ethernet cables are easier to run in walls, behind furniture, or through cable trays; Compact form factor makes it ideal for boardrooms, digital signage, trade shows, and classrooms
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
60 m
Maximum refresh rate
60 Hz
Audio output channels
7.1 channels
Supported graphics resolutions
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 1440, 2048 x 1152, 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 2560 x 1920, 2560 x 2048
HDCP
Yes
Material
Metal
Rack mounting
No
HDCP version
2.2
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
HDMI version
2.0
USB ports quantity
1
USB connector type
USB Type-C
Power
Power source type
USB
AC input voltage
100 - 240 V
Input current
0.3 A
Operating voltage (transmitter)
5 V
Output current
2 A
Operating voltage (receiver)
5 V
Power consumption (typical)
10 W
Power
USB Power Delivery (USB PD)
Yes
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Receiver dimensions (WxDxH)
40 x 67 x 23 mm
Receiver weight
92 g
Transmitter dimensions (WxDxH)
40 x 67 x 23 mm
Transmitter weight
92 g
Packaging data
Package width
150 mm
Package depth
117 mm
Package height
77 mm
Package weight
364 g
Packaging content
AC adapter included
Yes
Included power plug types
ANZ, EU, NA, UK
Quick start guide
Yes
Mounting brackets included
Yes
Technical details
Compliance certificates
Federal Communications Commission (FCC), RoHS
Logistics data
Master (outer) case width
430 mm
Master (outer) case length
330 mm
Master (outer) case height
380 mm
Products per master (outer) case
30 pc(s)
Additional Information
| EAN/UPC | 0065030918299 |
|---|---|
| MPN | S2CEPR1M-USB-CABLE |
| BRAND | STARTECH |
